Worm Gear Actuator used in Butterfly valve
ACT101
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· It is quarter turn gear actuator, suit to be used on ball valves,butterfly valves,plug valves etc.The housing made by precise casting, and the gear boxes have fresh pattern and nice appearance.It’s transmitted by worm gear and worm, and the worm gear with self-locking, also by using tapered roller bearing, the gear box can be operated more flexibly and have higher efficiency.Stem nut can be uni-body or separated just according to customers’ requirement. The mounting flange conforms to IS05211 standard. So it can be more convenient to match the valves.The protection grade can be IP65. For some special environment, it also can be IP68.
Specification

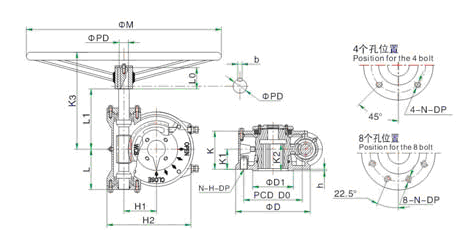

Product wireframe
Dimensions Data
|
Model |
MY-00 |
MY-0 |
MY-1 |
MY-2 |
MY-3 |
MY-4 |
MY-5 |
MY-6 |
|
|
Tec hnicai parameters |
|||||||||
|
Ratio |
33:1 |
39:1 |
46:1 |
49:1 |
55:1 |
60:1 |
62:1 |
67:1 |
|
| Max-torque Nm |
Nm |
500 |
980 |
1600 |
3000 |
4000 |
6500 |
8000 |
15000 |
|
kgfm |
51 |
100 |
143 |
255 |
408 |
663 |
816 |
1530 |
|
|
M.A.±10% |
7 |
8 |
9.5 |
14.7 |
16.5 |
18 |
18.6 |
20.3 |
|
|
Weight Kg |
6 |
12 |
15 |
25 |
34 |
52 |
85 |
94 |
|
|
Connection size |
|||||||||
|
FLANGE |
F1O |
F12 |
F14 |
F16 |
(F20) |
F25 |
F30 |
F35 |
|
|
Flange outside |
125 |
150 |
175 |
210 |
250 |
300 |
350 |
415 |
|
| PCD |
D0 |
102 |
125 |
140 |
165 |
205 |
254 |
298 |
356 |
|
N-H-DP |
4-M10-15 |
4-M12-18 |
4-M16-24 |
4-M20-30 |
8-M16-24 |
8-M16-24 |
8-M20-30 |
8-M30-45 |
|
|
Convex (D1 xh) |
70×3 |
85×3 |
1OOx4 |
130×5 |
140×5 |
200×5 |
230×5 |
260×5 |
|
|
Max-Stem-Diameter |
30 |
38 |
45 |
55 |
65 |
80 |
105 |
115 |
|
|
Appearance size |
|||||||||
|
H1 |
55 |
66 |
75 |
92 |
111 |
145 |
160 |
200 |
|
|
H2 |
151 |
208 |
230 |
270 |
303 |
373 |
420 |
495 |
|
|
K |
35 |
89 |
89 |
108 |
110 |
140 |
140 |
179 |
|
|
K1 |
43 |
51 |
52 |
63 |
61 |
85 |
87 |
110 |
|
|
K2 |
42 |
47 |
58 |
62 |
60 |
100 |
102 |
112 |
|
|
K3 |
200 |
230 |
285 |
330 |
380 |
430 |
465 |
530 |
|
|
L |
70 |
83 |
92 |
113 |
125 |
155 |
197 |
230 |
|
|
L1 |
102 |
135 |
145 |
192 |
213 |
256 |
265 |
340 |
|
| handwheel |
PD |
15 |
21 |
21 |
28 |
28 |
28 |
45 |
45 |
|
(b)key |
5 |
6 |
6 |
8 |
8 |
8 |
12 |
12 |
|
|
L0 |
35 |
35 |
35 |
40 |
40 |
40 |
50 |
50 |
|
|
M |
250 |
300 |
350 |
450 |
500 |
600 |
650 |
700 |
|
