Welding air pipe head


Product Detail

Product Tags

Product Description

The IFLOW Welding Air Tube Head is a cutting-edge solution designed for precision and efficiency in air tube welding applications. It is made using advanced technology and high-quality materials, and has a series of advantages that are different from traditional welding methods. The innovative design of IFLOW welding air tube heads ensures precise and even welding for superior quality and consistency. It delivers accurate and reliable welding performance, reduces the need for rework and increases overall productivity, making it a cost-effective choice for air duct welding projects.

With its user-friendly interface and intuitive controls, the IFLOW welding air head simplifies the welding process, making operation easier and reducing welder training time. This improves workflow efficiency and increases throughput. The durable construction of IFLOW welded air headers ensures long-term reliability and minimal maintenance requirements, providing a reliable solution for continued use in industrial environments.

Its rugged design helps minimize downtime and increase uptime, maximizing overall productivity. Rely on IFLOW welding air tube heads for precision, efficiency and reliability in air tube welding applications. Its advanced technology, user-friendly design and cost-effective performance make it ideal for achieving high-quality welds and optimizing workflows in industrial welding operations.

Specification

ITEM PART NAME MATERAL
1 BODY STEEL Q235-B
2 BOLT SUS304
3 FLOAT BALL PE
4 SIDE COVER STEEL Q235-B
5 SCREEN SUS304
6 SEAL Neoprene
7 SCREWPLUG PE

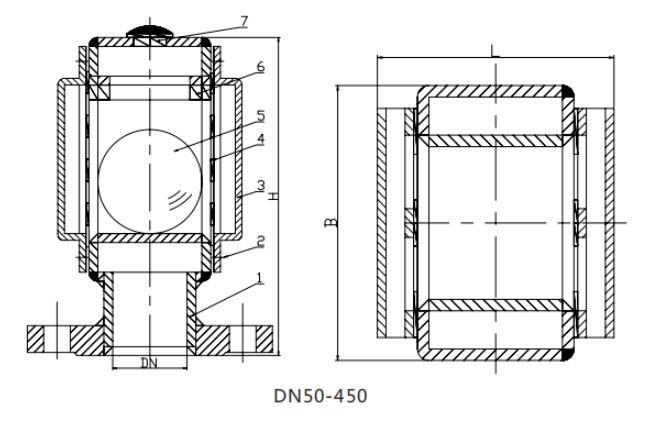

Product wireframe

specification

Dimensions Data

Dimensions
Size B L H
 DN50 144 124 214
 DN65 171 137 244
 DN80 194 152 284
 DN100 227 189 316
 DN125 269 223 366
 DN150 320 264 428
 DN200 419 352 542
 DN250 506 416 648
 DN300 605 487 766
 DN350 704 542 904
 DN400 810 642 1020
 DN450 904 718 1129
