SS316 PN40 Thin Single Disc Check Valve

CHV502

Size:DN50-DN600;2’’-24’’

Medium:water

Standard:EN12334/BS5153/MSS SP-71/AWWA C508

Pressure:CLASS 125-300/PN10-25/200-300PSI

Material:CI,DI

Type:wafer,swing


Product Detail

Product Tags

Product Description

Advantages:

Corrosion resistance: Made of stainless steel SS316 material, it has excellent corrosion resistance and is suitable for harsh media.

High pressure use: With a rated pressure of PN40, it can meet high pressure requirements and ensure stable system operation.

Compact design: The slim design can save installation space and is suitable for pipeline systems with limited space.

Usage: SS316 PN40 Thin Single Disc Check Valve is mainly used in liquid pipeline systems to prevent backflow of fluids and ensure unidirectional flow. It is suitable for pipeline systems in industries such as chemical, petroleum, and pharmaceutical industries

Features

Product Overview

Material: Made of stainless steel SS316, it has excellent corrosion resistance and is suitable for pipeline systems with corrosive media.

Rated pressure: The rated pressure is PN40, which means it can withstand higher pressures and is suitable for high-pressure environments.

Thin design: Adopting a thin design, the structure is compact and suitable for situations with limited installation space.

Single piece valve disc: Adopting a single piece valve disc structure, it has the characteristic of rapid response.

product_overview_r
product_overview_r

Technical Requirement

· Working pressure: 1.0/1.6/2.5/4.0MPa
· NBR: 0℃~80℃
· EPDM: -10℃~120℃
· VITON: -20℃~180℃
· Flange standard: EN1092-2, ANSI125/150, JIS 10K
· Testing: DIN3230, API598
· Medium: Fresh water, sea water, food, all kinds of oil, acid, alkaline etc.

Specification

PART NAME MATERIAL
Body SS316/SS304/WCB
Disc SS316/SS304/WCB
Ring SS316
Baffle SS316/SS304/WCB
O-ring NBR/EPDM/VITON
Bolt SS316/SS304/WCB

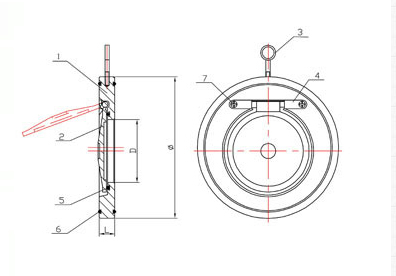

Product wireframe

Dimensions Data

DN (mm) 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
ΦD (mm) 71 82 92 107 127 142 162 192 218 273 328 378 438 489 532 585 690
329 384 444 491 550 610 724
ΦE (mm) 12 17 22 32 40 54 70 92 114 154 200 235 280 316 360 405 486
L (mm) 14 14 14 14 14 14 18 18 20 22 26 28 38 44 50 56 62
