Sea water filter

STANDARD : CB/T497-94

A、AS、BL、BLS、BR、BRS


Product Detail

Product Tags

Product Description

A seawater filter is a device used to treat seawater and is used to remove impurities, microorganisms and dissolved salts in seawater.
Introduce: Seawater filters are filtration equipment specially designed to treat seawater, usually including different kinds of filtration media and technologies, such as membrane separation, reverse osmosis, etc., to ensure clean, pure water from seawater.

Features:

Corrosion resistance: Seawater filters are usually made of corrosion-resistant materials to adapt to the high salt content in seawater.
High-efficiency filtration: Seawater filters can effectively remove salt, microorganisms and impurities in seawater, providing clean water for use.
Various technologies: Seawater filters can use a variety of technologies, such as reverse osmosis, ion exchange, etc., to meet different water quality requirements.

Advantage:

Renewable resources: Seawater is one of the most abundant water resources on earth. Through seawater filters, seawater can be converted into freshwater resources that can be used by people.
Wide range of applications: Seawater filters can be used in ships, island residents, seawater desalination plants and other occasions to solve the problem of water scarcity.
Providing clean water: Seawater filters can provide clean and healthy drinking water and can solve the problem of regional water shortages.
Usage: Seawater filters are widely used in marine engineering, marine ecological protection, island residents' water use, ship drinking water and other occasions to meet the demand for water resources in these environments. At the same time, seawater filters are also used in seawater desalination plants to convert seawater into fresh water to solve the shortage of freshwater resources in arid areas.

product (1)
product (2)

Specification

ITEM PART NAME MATERAL
1 BODY STEEL Q235-B
2 FILTER ELEMENT  SUS304
3 GASKET  NBR
4  COVER  STEEL Q235-B
5 SCREWPULG  COPPER
6 RING NUT  SUS304
7 SWING BOLT  STEEL Q235-B
8 PIN SHAFT  STEEL Q235-B
9 SCREWPLUG  COPPER

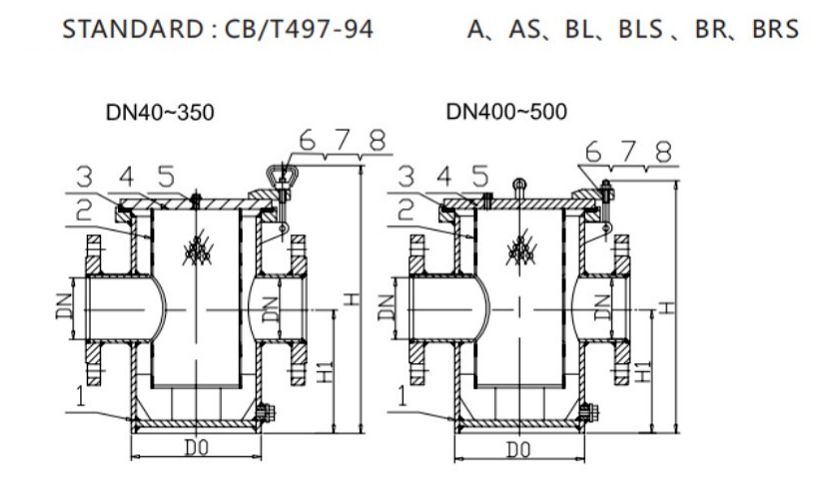

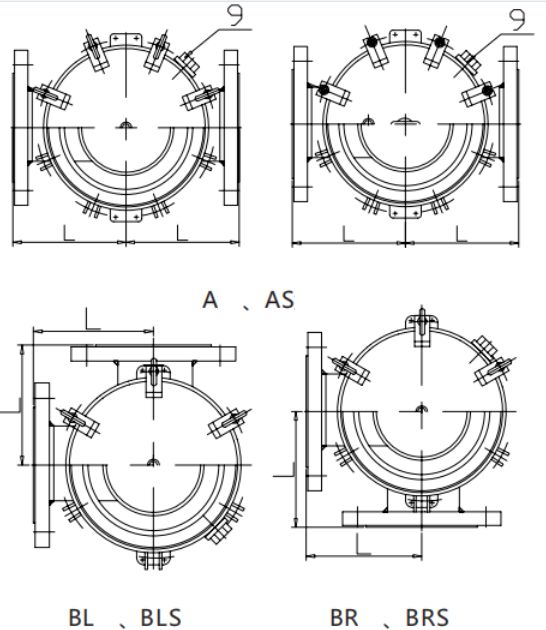

Dimensions Data

Dimensions
Size D0 H H1 L
DN40 133 241 92 135
DN50 133 241 92 135
DN65 159 316 122 155
DN80 180 357 152 175
 DN100 245 410 182 210
 DN125 273 433 182 210
 DN150 299 467 190 245
 DN200 351 537 240 270
 DN250 459 675 315 300
 DN300 500 751 340 330
 DN350 580 921 508 425
 DN400 669 975 515 475
 DN450 754 1025 550 525
 DN500 854 1120 630 590
