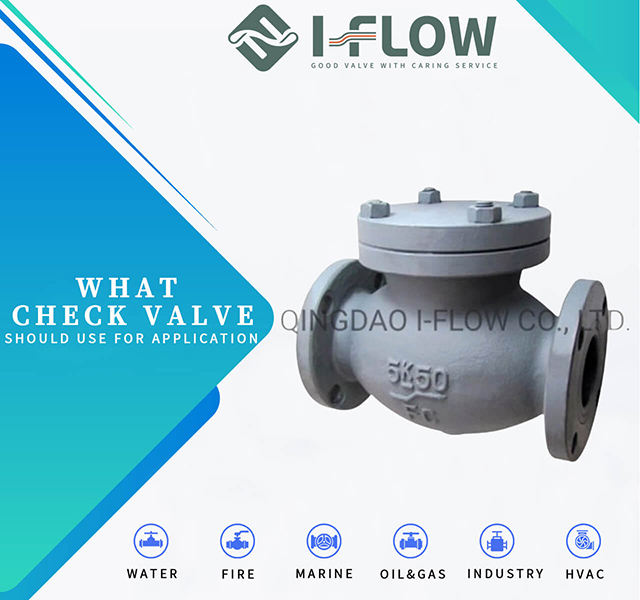

Swing Check Valves
How they work: Swing check valves feature a disc or flap that swings open when flow occurs in the right direction and closes when flow reverses. The disc is typically hinged at one end.
Best for: Low to medium flow applications where space is limited. These are commonly used in water, oil, and gas pipelines.
Advantages: Simple design, cost-effective, and reliable for controlling flow in various systems.
Limitations: Not suitable for high-pressure systems or applications with rapid flow changes as the swinging disc can cause wear and tear over time.
Lift Check Valves
How they work: Lift check valves feature a disc that lifts off its seat to allow flow. When backflow occurs, the disc is forced back onto the seat to stop the flow.
Best for: Applications with higher pressure and flow rates, such as in pumping stations or boiler systems.
Advantages: Suitable for high-flow, high-pressure systems. Can be installed in both vertical and horizontal orientations.
Limitations: Requires a certain amount of pressure to function correctly. Not ideal for systems with low pressure.
Ball Check Valves
How they work: Ball check valves use a ball that sits on a seat inside the valve body. When the flow moves in the correct direction, the ball moves away from the seat, allowing fluid to pass. When the flow reverses, the ball is pushed back onto the seat, sealing off the valve.
Best for: Applications where a quick closing mechanism is required, such as in sewage treatment systems or pumps.
Advantages: Compact design, effective at sealing, and resistant to backflow in high-velocity fluid systems.
Limitations: They can be susceptible to wear and clogging from debris in the fluid.
Spring-loaded Check Valves
How they work: These valves use a spring mechanism to hold the valve’s disc or ball closed until the pressure of the incoming fluid pushes it open. The spring then closes the valve when backflow occurs.
Best for: Low to moderate flow applications in systems like HVAC and water treatment where backflow needs to be prevented under varying pressure conditions.
Advantages: Simple to maintain, reliable, and ideal for pumping systems or applications requiring quick shutoff.
Limitations: Can be affected by the quality of the fluid or the environment, especially if the spring is exposed to harsh conditions.
Tilting Disc Check Valves
How they work: The tilting disc valve features a disc that tilts in response to the flow direction, providing a seal when backflow occurs. The disc is designed to tilt at an angle to the valve body.
Best for: High-pressure and high-flow applications like in waterworks or chemical processing systems.
Advantages: Efficient flow characteristics, minimal pressure loss, and compact design.
Limitations: More complex than other types, and the disc can wear over time due to mechanical stress.
Wafer Check Valves
How they work: Wafer check valves have a thin, compact design and are typically installed between flanges. The valve uses a disc or flapper that opens with flow and shuts when it reverses.
Best for: Applications where space is limited or where standard flange connections are used.
Advantages: Compact and cost-effective design with easy installation.
Limitations: Not suited for high-pressure or high-flow applications.
Key Considerations for Choosing the Right Check Valve
Flow Direction:Ensure that the valve is suitable for the direction of flow in your system. Some valves, like swing check valves, work best when installed in a particular direction, while others are more versatile.
Pressure and Temperature Requirements:Choose a check valve rated for the maximum pressure and temperature of your system. High-pressure systems require valves like lift or tilting disc check valves, while lower-pressure applications can work with simpler designs like swing check valves.
Fluid Type and Condition:Consider the fluid passing through your system. For example, corrosive fluids require valves made of materials like stainless steel or bronze, while clean liquids may be handled by plastic or composite check valves.
Additionally, check for debris or particles in the fluid. Ball check valves, for example, are less prone to debris buildup than swing check valves, which can become clogged with particles.
Size and Space Constraints:The size of your valve should match the size of your pipework and the available installation space. For smaller, more confined systems, wafer check valves or ball check valves can offer compact solutions without sacrificing functionality.
Closing Speed and Reliability:Some applications, especially in pumping systems, require a check valve that closes quickly to prevent water hammer or pressure surges. For such cases, a spring-loaded or ball check valve is often the best choice.
Maintenance Requirements:Some check valves, like spring-loaded check valves, require minimal maintenance, while others, like swing check valves, might need more frequent servicing. Be sure to choose a valve that fits your maintenance capabilities and schedules.
Certifications and Compliance:Ensure that the check valve you choose meets relevant industry standards and certifications. For example, in the marine and chemical industries, valves must often comply with specific material and safety standards, such as ISO 9001 or CE certification.
