GAV102-250
IFLOW MSS SP-70 Class 250 OS&Y cast iron gate valve, a superior solution for industrial applications requiring precise control and rugged reliability. Designed to the highest standards and designed to provide superior performance in high pressure environments, this gate valve provides unparalleled durability and safety.
The gate valve has an ABS certificate and has been rigorously tested and approved for marine and offshore applications, providing quality assurance and compliance with industry standards. The sturdy cast iron construction ensures longevity and resilience, making it suitable for use in a variety of demanding industrial environments. The OS&Y (External Stem and Yoke) design allows easy viewing of valve operating status, improving safety and maintenance efficiency.
Its Class 250 rating allows this valve to easily handle high-pressure conditions, making it a reliable choice for critical industrial operations. Choose IFLOW MSS SP-70 Grade 250 OS&Y cast iron gate valve with ABS certification for uncompromising performance, durability and safety in industrial and marine applications. Trust its proven reliability to keep your critical systems running smoothly and efficiently.
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
· Design and Manufacture conform to MSS SP-70
· Flange dimensions conform to ANSI B16.1
· Face to Face dimensions conform to ANSI B16.10
· Testing conform to MSS SP-70

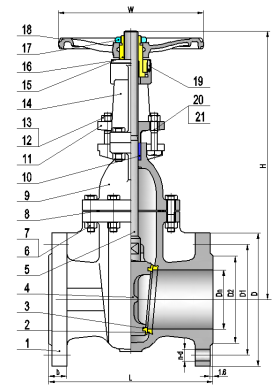

Body | ASTM A126 B |
SEAT RING | ASTM B62 |
WEDGE RING | ASTM B62 |
WEDGE | ASTM A126B |
STEM | ASTM B16 H02 |
BOLT | CARBON STEEL |
NUT | CARBON STEEL |
BONNET GASKET | GRAPHITE+STEEL |
BONNET | ASTM A126 B |
PACKING | GRAPHITE |
PACKING GLAND | ASTM A126 B |
STEM NUT | MN-BRASS |
HANDWHEEL | ASTM A126 B |
NPS | 2 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
Dn | 51 | 63.5 | 76 | 102 | 127 | 152 | 203 | 254 | 305 |
L | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 459 | 502 |
D | 165 | 191 | 210 | 254 | 279 | 318 | 381 | 445 | 521 |
D1 | 127 | 149 | 168 | 200 | 235 | 270 | 330 | 387 | 451 |
D2 | 106.5 | 125.5 | 144.5 | 176.5 | 211.5 | 246.5 | 303.3 | 357.5 | 418 |
b | 22.3 | 25.4 | 28.6 | 31.8 | 35 | 36.6 | 41.3 | 47.6 | 50.8 |
n-d | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-29 | 16-32 |
H | 340 | 384 | 412 | 485 | 567 | 659 | 840 | 1005 | 1142 |
W | 200 | 200 | 250 | 280 | 306 | 360 | 400 | 450 | 508 |
