MSS SP-70 Class 250 NRS Cast Iron Gate Valve Featured Image
  • MSS SP-70 Class 250 NRS Cast Iron Gate Valve

MSS SP-70 Class 250 NRS Cast Iron Gate Valve

GAV101-250

Standards: AWWA C515,  DIN3352 F4/F5,  BS5163,  BS5150

Type: OS&Y, NRS

Size: DN50-DN600/2″ – 24″

Material:CI, DI, STAINLESS STAIN, BRASS, BRONZE

pressure:CLASS 125-300/PN10-25/200-300PSI

Driving mode:handwheel, bevel gear, gear


Product Detail

Product Tags

Features

Product Overview

Generally used in connection setups that require no specific condition or material, wedge gate valves offer long-term sealing and reliable performance. The valve’s distinctive wedge design elevates the sealing load, allowing for tight seals in both high and low-pressure situations.Backed by an integrated supply chain and strong manufacturing capabilities, I-FLOW is your best source for marketable wedge gate valves. Custom wedge gate valves from I-FLOW go through the painstaking design and rigorous quality testing to achieve next-level performance.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture conform to MSS SP-70
· Flange dimensions conform to ANSI B16.1
· Face to Face dimensions conform to ANSI B16.10
· Testing conform to MSS SP-70

Specification

Body ASTM A126 B
SEAT RING ASTM B62
WEDGE RING ASTM B62
WEDGE ASTM A126 B
STEM ASTM B16 H02/2Cr13
BOLT CARBON STEEL
NUT CARBON STEEL
BONNET GASKET GRAPHITE+STEEL
BONNET ASTM A126 B
STUFFING BOX ASTM A126 B
PACKING GLAND ASTM A126 B
HANDWHEEL DUCTILE IRON

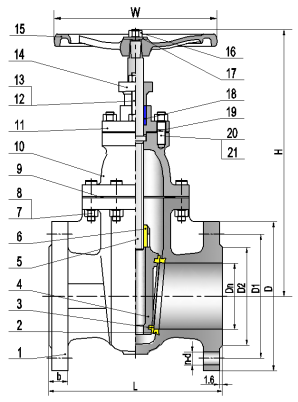

Product wireframe

Dimensions Data

NPS 2 2 3 4 5 6 8 10 12
Dn 51 63.5 76 102 127 152 203 254 305
L 216 241 283 305 381 403 419 459 502
D 165 191 210 254 279 318 381 445 521
D1 127 149 168 200 235 270 330 387 451
D2 106.5 125.5 144.5 176.5 211.5 246.5 303.3 357.5 418
b 22.3 25.4 28.6 31.8 35 36.6 41.3 47.6 50.8
n-d 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32
H 332 378 421 463 529 603 723 810 879
W 200 200 255 306 306 360 406 450 508
