JIS F7348 Bronze 16K globe valves(union bonnet type)
NO.118
Product Description
The JIS F7348 Bronze 16K Globe Valves (union bonnet type) offer a convenient and reliable solution for controlling and regulating the flow of liquids in piping systems. With their union bonnet design, these valves allow for easy maintenance and repair without the need for complete disassembly.
The bronze construction provides excellent corrosion resistance, making them suitable for a wide range of applications, including seawater and marine environments. The 16K pressure rating ensures these valves can handle moderate to high-pressure systems with ease, offering versatility and performance.
Their compact design and easy installation make them convenient for a variety of industrial and commercial settings. With their durable construction and ease of maintenance, these globe valves are a convenient choice for fluid control applications.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· DESIGN STANDARD:JIS F 7348-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42
Specification
| HANDWHEEL | FC200 |
| GASKET | NON-ASBESTES |
| STEM | C3771BD OR BE |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

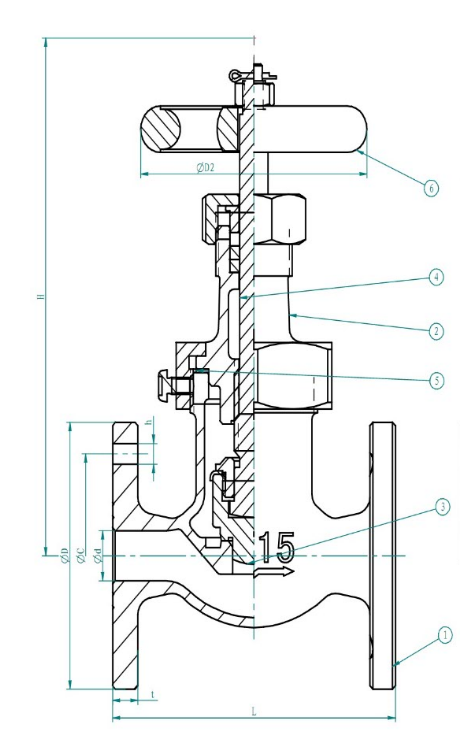

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 155 | 80 |
| 20 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 165 | 100 |
| 25 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 185 | 125 |
| 32 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 195 | 125 |
| 40 | 40 | 160 | 120 | 95 | 4 | 15 | 1 | 210 | 140 |
