JIS F7302 Bronze 5K angle valve

NO.107

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:5K,10K，16K

Size:DN15-DN300

Material:cast iron,cast steel,forged steel,brass,bronze

Type:globe valve,angle valve

Media: Water,Oil,Steam

Send email to us

Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· DESIGN STANDARD:JIS F 7301-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05
· SEAT: 0.77

Specification

HANDWHEEL	FC200
GASKET
STEM	C3771BD OR BE
DISC	BC6
BONNET	BC6
BODY	BC6
NAME OF PART	MATERIAL

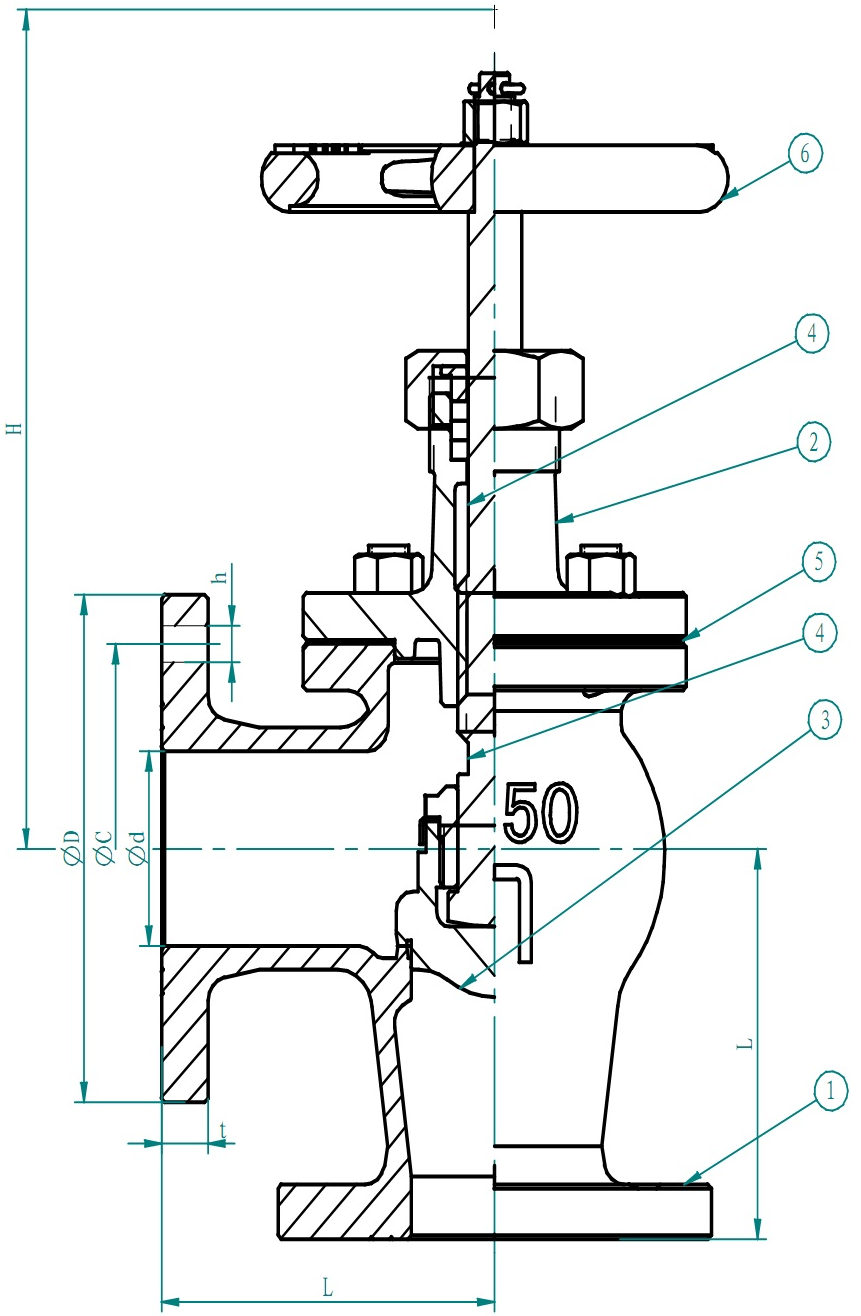

Product wireframe

Dimensions Data

DN	D	L	D	C	NO.	H	T	H	D2
15	15	55	80	60	4	12	9	120	80
20	20	60	85	65	4	12	10	130	100
25	25	65	95	75	4	12	10	145	125
32	32	80	115	90	4	15	12	150	125
40	40	85	120	95	4	15	12	165	140
50	50	100	130	105	4	15	14	200	140
65	65	115	155	130	4	15	14	220	160
