JIS F 7472 Cast Steel 10K screw-down angle valve Featured Image
  • JIS F 7472 Cast Steel 10K screw-down angle valve
  • JIS F 7472 Cast Steel 10K screw-down angle valve

JIS F 7472 Cast Steel 10K screw-down angle valve

F7472

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:10K

Size:DN15-DN300

Material:cast iron,cast steel,forged steel,brass,bronze

Type:globe valve,angle valve

Media: Water,Oil,Steam


Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7372-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 2.1
· SEAT: 1.54-0.4

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM SUS403
VALVE SEAT SCS2
DISC SCS2
BONNET SC480
BODY SC480
NAME OF PART MATERIAL

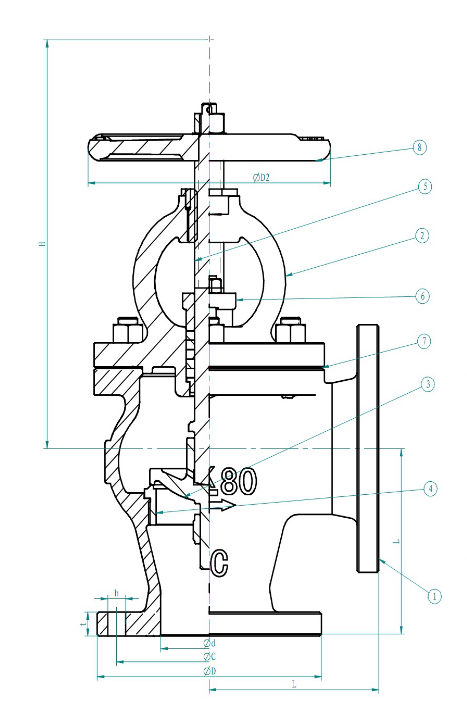

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 120 155 120 4 19 16 235 160
65 65 130 175 140 4 19 18 250 200
80 80 140 185 150 8 19 18 255 200
100 100 160 210 175 8 19 18 290 250
125 125 180 250 210 8 23 20 340 280
150 150 205 280 240 8 23 22 385 315
200 200 230 330 290 12 23 22 460 355
