JIS F 7417 Bronze16K lift check globe valve(union bonnet type) Featured Image
  • JIS F 7417 Bronze16K lift check globe valve(union bonnet type)

JIS F 7417 Bronze16K lift check globe valve(union bonnet type)

NO.143

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:5K

Size: DN15-DN40

Material: Cast iron,cast steel,forged steel,brass,bronze

Type: globe valve, angle valve

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

JIS F7417 Bronze 16K lift check globe valve (union bonnet type) is a copper alloy 16K lift check globe valve that complies with Japanese Industrial Standards (JIS).

Introduce: JIS F7417 Bronze 16K lift check globe valve (union bonnet type) is a lift check globe valve suitable for fluid control in pipeline systems. It has the dual functions of a lift check valve and a stop valve, which can be used to prevent backflow and regulate fluid flow.

Advantage:

Corrosion resistance: Copper alloy material has excellent corrosion resistance and is suitable for a variety of media and working environments.
Reliability: The lifting design ensures that the valve can reliably realize the check and interception functions and ensure the stable operation of the pipeline system.
Easy maintenance: The combined valve cover design makes maintenance and inspection more convenient and can reduce downtime.

Usage: JIS F7417 Bronze 5K lift check globe valve (union bonnet type) is mainly used to control the flow of fluid in the pipeline system, prevent backflow and regulate flow. Suitable for applications in water treatment systems, water supply systems, seawater systems, shipbuilding and marine engineering.

Features

Product Overview

Copper alloy material: The valve body and valve cover are made of corrosion-resistant copper alloy, which has excellent durability and corrosion resistance.
Lift design: The valve disc adopts a lift design, which can achieve precise fluid control and prevent backflow.
5K standard pressure level: Complies with 16K standard pressure level and is suitable for medium and low pressure systems.
Combined valve cover design: The combined valve cover design facilitates maintenance and inspection.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7417-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

Specification

GASKET NON-ASBESTES
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

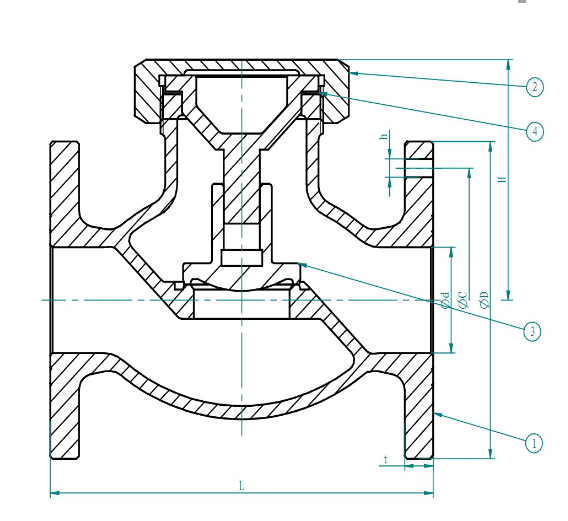

Product wireframe

By preventing reverse flow, check valves prevent the mixing of different media between two reservoirs. For example, in a water treatment plant, check valves prevent treated water from flowing back into the untreated water reservoir.

Dimensions Data

DN d L D C NO. h t H
15 15 110 95 70 4 15 12 66
20 20 120 100 75 4 15 14 71
25 25 130 125 95 4 19 14 81
32 32 160 135 100 4 19 16 83
40 40 180 140 105 4 19 16 91
