JIS F 7413 Screw down globe check valve
F7413
Product Description
The testing process for JIS F 7413 screw-in stop and check valves involves a variety of procedures to ensure their performance and reliability. These tests typically include pressure testing to verify the valve’s ability to withstand specified pressure limits, leakage testing to identify any potential leak points, and functional testing to evaluate the valve’s ability to operate under varying flow and pressure conditions.
In addition, material and dimensional inspections are performed to confirm compliance with standard requirements. The testing process helps verify that the valve complies with JIS F 7413 standards and ensures that it meets the quality and safety standards required for the intended application.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· DESIGN STANDARD:JIS F 7313-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4
Specification
| HANDWHEEL | FC200 |
| GASKET | NON-ASBESTES |
| STEM | C3771BD OR BE |
| DISC | BC6 |
| BONNET | BC6 |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

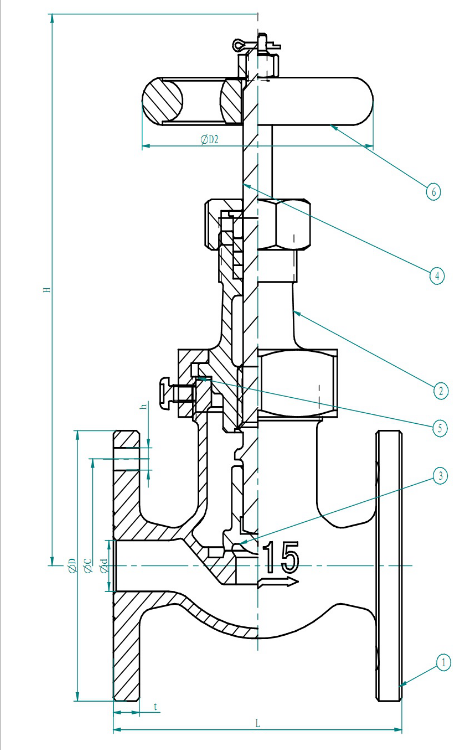

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 150 | 80 |
| 20 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 160 | 100 |
| 25 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 185 | 125 |
| 32 | 32 | 160 | 135 | 100 | 4 | 19 | 16 | 190 | 125 |
| 40 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 205 | 140 |
