JIS F 7410 Bronze 16K screw-down check angle valve Featured Image
  • JIS F 7410 Bronze 16K screw-down check angle valve
  • JIS F 7410 Bronze 16K screw-down check angle valve

JIS F 7410 Bronze 16K screw-down check angle valve

F7410

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure:16K

Size:DN15-DN40

Material:Cast iron, cast steel, forged steel, brass, bronze

Type:globe valve, angle valve

Media: Water, Oil, Steam


Product Detail

Product Tags

Features

Product Overview

Angle globe valve comes with the same specifications as the disc, stem, and seat ring design with the globe valves. These valves ensure less resistance to flow as compared to normal globe valves with the elbow that it will replace. Furthermore, it decreases the number of joints in a line, thereby saving installation time. The effectiveness of controlling the fluid justifies the purchasing angle globe valve.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7398-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
·BODY: 3.3
· SEAT: 2.42-0.4

Specification

HANDWHEEL FC200
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

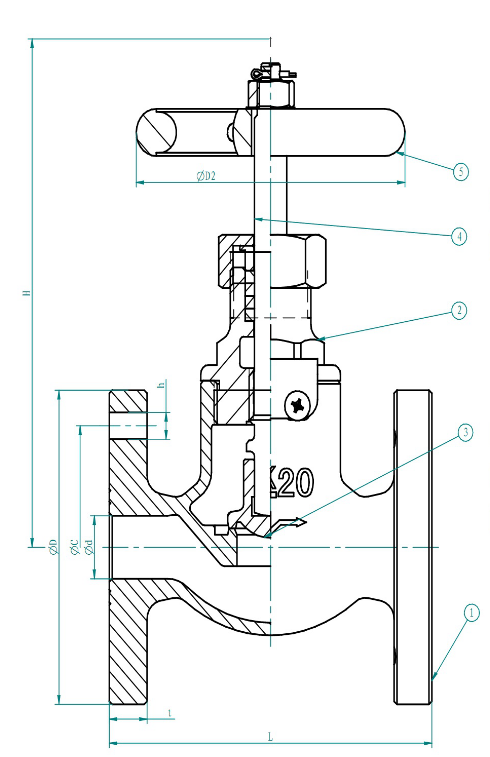

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
15 15 70 95 70 4 15 12 120 80
20 20 75 100 75 4 15 14 125 100
25 25 85 125 90 4 19 14 140 125
32 32 95 135 100 4 19 16 145 125
40 40 100 140 105 4 19 16 160 140
