JIS F 7378 Cast iron 16K screw-down angle valve Featured Image
  • JIS F 7378 Cast iron 16K screw-down angle valve

JIS F 7378 Cast iron 16K screw-down angle valve

NO.134

Pressure:16K

Size:DN50-DN200

Material:cast iron,cast steel,forged steel,brass,bronze

Type: Check valve

Media: Water,Oil,Steam


Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7377-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42-0.4

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

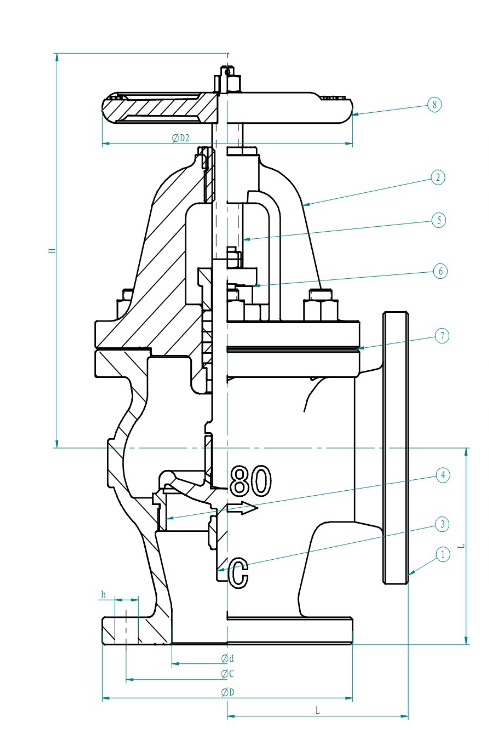

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 120 155 120 8 19 20 255 160
65 65 130 175 140 8 19 22 260 200
80 80 150 200 160 8 23 24 290 224
100 100 170 225 185 8 23 26 320 250
125 125 200 270 225 8 25 26 375 315
150 150 225 305 260 12 25 28 425 355
200 200 250 350 305 12 25 30 521 450
