The JIS F7369 Cast Iron 16K Gate Valve is a product manufactured according to the Japanese Industrial Standards (JIS). It is designed to regulate the flow of fluids in pipelines with a pressure rating of 16 kilograms per square centimeter (16K). This type of gate valve is commonly used in industrial and marine applications to control the flow of liquids such as water, oil, and other fluids.
The cast iron construction provides durability and resistance to corrosion, making it suitable for use in various environmental conditions. The valve is designed to provide efficient flow control and is equipped with a sturdy gate mechanism to ensure reliable operation. With its adherence to the JIS standards and robust construction, the JIS F7369 Cast Iron 16K Gate Valve is a reliable choice for fluid handling in diverse industrial settings.
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
· DESIGN STANDARD:JIS F 7367-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 3.3
· SEAT: 2.42
DISC | FC200 |
HANDWHEEL | FC200 |
GASKET | NON-ASBESTES |
PACKING GLAND | BC6 |
STEM | CA771BD |
VALVE SEAT | BC6 |
BONNET | FC200 |
BODY | FC200 |
NAME OF PART | MATERIAL |

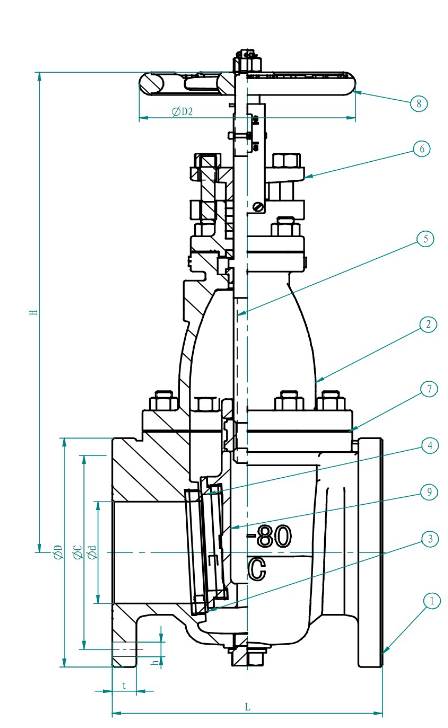

DN | d | L | D | C | NO. | h | t | H | D2 |
50 | 50 | 200 | 155 | 120 | 8 | 19 | 20 | 300 | 140 |
65 | 65 | 220 | 175 | 140 | 8 | 19 | 22 | 350 | 160 |
80 | 80 | 230 | 200 | 160 | 8 | 23 | 24 | 400 | 180 |
100 | 100 | 250 | 225 | 185 | 8 | 23 | 26 | 450 | 200 |
125 | 125 | 270 | 270 | 225 | 8 | 25 | 26 | 510 | 224 |
150 | 150 | 290 | 305 | 260 | 12 | 25 | 28 | 559 | 250 |
200 | 200 | 320 | 350 | 305 | 12 | 25 | 30 | 702 | 315 |
