JIS F 7367 Bronze 5K rising stem type gate valve Featured Image
  • JIS F 7367 Bronze 5K rising stem type gate valve
  • JIS F 7367 Bronze 5K rising stem type gate valve
  • JIS F 7367 Bronze 5K rising stem type gate valve

JIS F 7367 Bronze 5K rising stem type gate valve

F7367

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure: 5K, 10K, 16K

Size: DN15-DN300

Material: Castiron, caststeel, forgedsteel, brass, bronze

Type: Globevalve, anglevalve

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

The JIS F7367 Bronze 5K rising stem type gate valve is a product that adheres to the Japanese Industrial Standards (JIS) for its design and manufacturing specifications. The valve is commonly used in marine and industrial applications where a reliable and durable flow control solution is required.

Its rising stem design allows for easy visual indication of the valve’s status, and the bronze construction provides excellent resistance to corrosion, making it suitable for marine environments. The 5K rating indicates the valve’s maximum allowable pressure, aligning with the JIS standards.

The JIS F7367 gate valve represents the high standards of engineering and quality associated with Japanese industrial products, reflecting the country’s expertise in precision manufacturing and materials technology. Its design and performance characteristics make it a widely recognized and respected solution for fluid control in various industries around the world.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture conform to BS5163
· Flange dimensions conform to EN1092-2 PN16
· Face to face dimensions conform to BS5163
· Testing conform to BS516, 3EN12266-1
· Driving mode: Hand wheel, square cover

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
STEM CA771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

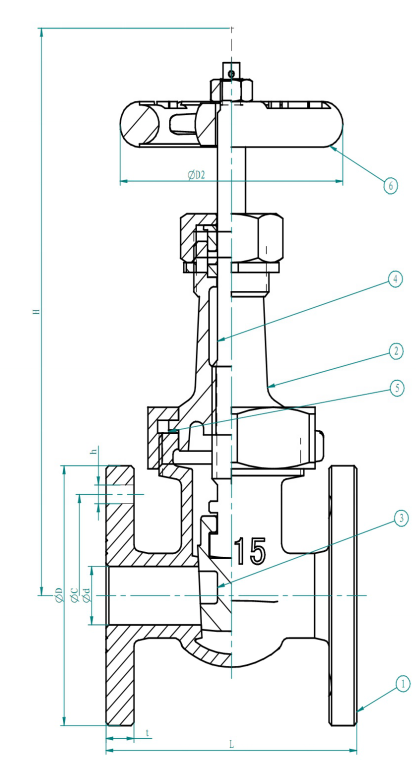

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
15 15 90 80 60 4 12 9 175 80
20 20 100 85 65 4 12 10 200 80
25 25 110 95 75 4 12 10 220 100
32 32 130 115 90 4 15 12 250 100
116 117 118 119 120 121 122 123 124 125
