JIS F 7364 Cast iron 10K gate valve

F7364

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure: 5K, 10K, 16K

Size: DN15-DN300

Material: Castiron, caststeel, forgedsteel, brass, bronze

Type: Globevalve, anglevalve

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

IFLOW JIS F 7364 cast iron 10K gate valve, specially designed for marine applications. Made from high-quality cast iron, this gate valve is able to withstand the rigors of the marine environment and offers exceptional durability and service life. Its rugged construction ensures corrosion resistance, making it ideal for marine applications where there is regular exposure to salt water and harsh weather conditions. The gate valve’s 10K pressure rating makes it suitable for precise and reliable management of high-pressure marine systems.

Its design complies with JIS F 7364 standards, ensuring compliance with industry requirements and ensuring optimal performance in marine applications. With its exceptional strength and performance, this gate valve provides efficient flow control, helping to keep critical ship systems running smoothly.

IFLOW JIS F 7364 Cast Iron 10K Gate Valve is equipped with state-of-the-art features for resilience, long service life and excellent functionality making it the first choice for marine applications. This gate valve is believed to provide the performance and durability needed to meet the unique challenges of the marine environment, ensuring the safety and efficiency of marine systems.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture conform to BS5163
· Flange dimensions conform to EN1092-2 PN16 .
· Face to face dimensions conform to BS5163.
· Testing conform to BS5163 EN12266-1.
· Driving mode: Hand wheel, square cover.

Specification

DISC FC200
HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM CA771BD / SUS403
VALVE SEAT BC6 / SCS2
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

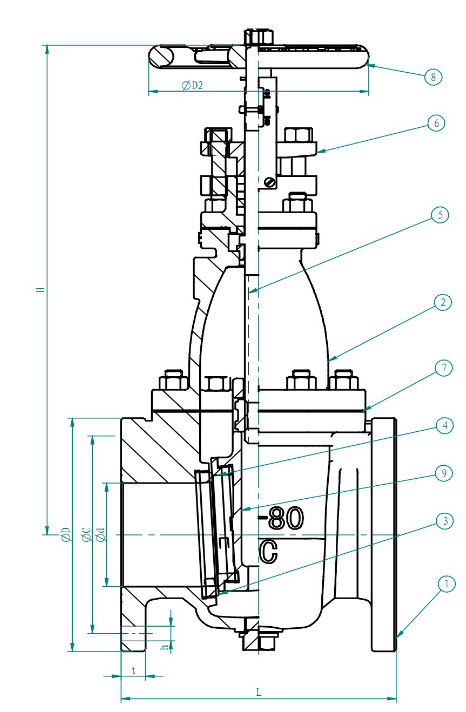

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 200 155 120 4 19 20 300 140
65 65 220 175 140 4 19 22 350 160
80 80 230 185 150 8 19 22 400 180
100 100 250 210 175 8 19 24 450 200
125 125 270 250 210 8 23 24 520 224
150 150 290 280 240 8 23 26 580 250
200 200 320 330 290 12 23 26 700 315
250 250 380 400 355 12 25 30 840 400
300 300 440 445 400 16 25 32 960 450
350 335 500 490 445 16 25 34 1050 500
400 380 590 560 510 16 27 36 1150 560
