JIS F 7333 Cast iron hose valve

NO.115

Pressure:5K

Size:DN50-DN65

Material:cast iron, ductile iron

Type:globe valve

Media: Water,Oil,Steam


Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7333-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 5K:1.05

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD OR BE
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

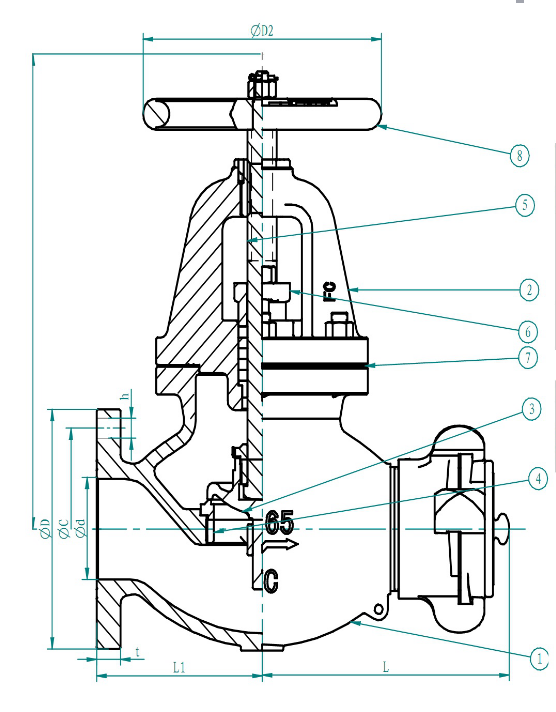

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
5K50 50 165 130 105 4 15 16 270 105
10K50 50 170 155 120 4 19 20 285 110
10K65 65 200 175 140 4 19 22 310 135
