JIS F 7306 Cast iron 5K Angle valve Featured Image
  • JIS F 7306 Cast iron 5K Angle valve
  • JIS F 7306 Cast iron 5K Angle valve

JIS F 7306 Cast iron 5K Angle valve

NO.110

Pressure:5K

Size:DN15-DN400

Material:

Type:globe valve,angle valve

Media: Water,Oil,Steam


Product Detail

Product Tags

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7306-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: ≤300 :1.05

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
PACKING GLAND BC6
STEM C3771BD OR BE
VALVE SEAT BC6
DISC BC6
BONNET FC200
BODY FC200
NAME OF PART MATERIAL

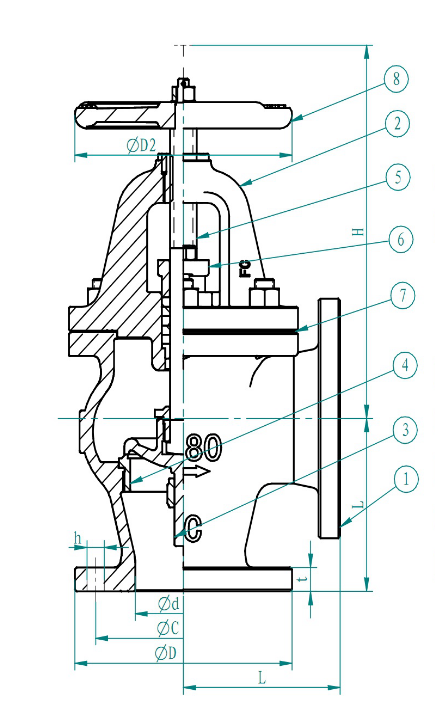

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
50 50 100 130 105 4 15 16 270 160
65 65 115 155 130 4 15 18 300 180
80 80 130 180 145 4 19 18 310 180
100 100 150 200 165 8 19 20 360 224
125 125 170 235 200 8 19 20 390 250
150 150 190 265 230 8 19 22 445 280
200 200 220 320 280 12 23 24 530 315
250 250 275 385 345 12 23 26 650 355
300 300 310 430 390 12 23 28 740 400
350 350 360 480 435 12 25 30 840 500
400 400 395 540 495 16 25 30 940 560
