JIS F 7121 Shipbuilding-Can water filter
NO.102
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· DESIGN STANDARD
· TEST: JIS F7400-1996
· TEST PRESSURE/MPA
· BODY: 0.3br />
Specification
| GASKET GASKET | 1 |
| STRAINER | SUS 304 |
| COVER PUSH | FCD400 |
| BONNET | FC200 |
| BODY | FC200 |
| NAME OF PART | MATERIAL |

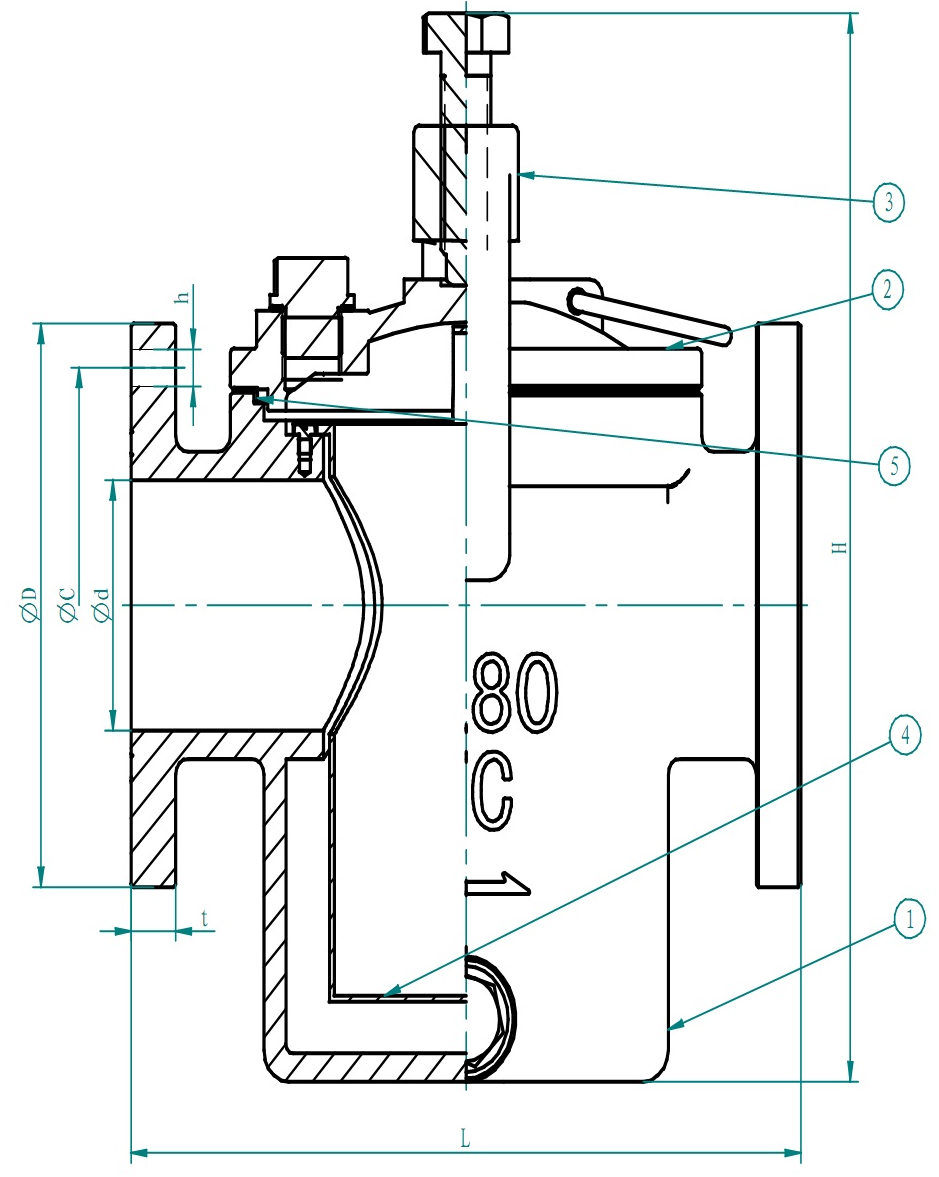

Product wireframe
Dimensions Data
| DN | D | L | D | C | NO. | H | T | H |
| 25 | 25 | 170 | 95 | 75 | 4 | 12 | 14 | 191 |
| 32 | 32 | 190 | 115 | 90 | 4 | 15 | 16 | 218 |
| 40 | 40 | 190 | 120 | 95 | 4 | 15 | 16 | 218 |
| 50 | 50 | 200 | 130 | 105 | 4 | 15 | 16 | 239 |
| 65 | 65 | 250 | 155 | 130 | 4 | 15 | 18 | 306 |
| 80 | 80 | 270 | 180 | 145 | 4 | 19 | 18 | 341 |
| 100 | 100 | 320 | 200 | 165 | 8 | 19 | 20 | 401 |
