JIS F 3019 Self-closing Gate Valve Heads for Sounding Pipe

NO.101

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:5K,10K,16K

Size: DN40-DN50

Material:Brass,bronze

Type: globe valve,angle valve

Media: Water,Oil,Steam


Product Detail

Product Tags

Product Description

IFLOW JIS F 3019 self-closing gate valve head for sounding pipes is precision engineered to provide superior functionality and reliability in marine applications. These innovative valve heads offer a range of features that make them ideal for efficient, safe operation in marine environments. These self-closing gate valve heads are made of high-quality materials and comply with the strict specifications of JIS F 3019 to ensure durability and corrosion resistance under the harsh conditions of the marine environment.

This rugged construction guarantees long-term performance and minimizes maintenance needs, giving you peace of mind and increased operational efficiency. The automatic closing mechanism of IFLOW JIS F 3019 valve heads ensures that they close automatically when not in use, preventing accidental leaks and promoting environmental safety. This critical feature not only enhances compliance with industry regulations, it also helps provide a safer working environment for maritime personnel, reducing the risk of leaks and related hazards.

These valve heads are designed to be easy to install and compatible with a variety of bathymetric piping systems for versatility and convenience. Their reliability, durability and environmental safety features make them the first choice for marine applications, setting new standards for excellence in valve technology. For superior reliability, environmental safety and seamless integration in marine environments, trust the IFLOW JIS F 3019 self-closing gate valve head for sounding pipes to deliver unparalleled performance and peace of mind, ensuring smooth and trouble-free operation in marine applications. malfunction operation.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD
· TEST: JIS F7400-1996
· TEST PRESSURE/MPA
· BODY: 0.3br />
· SEAT: 0.2

Specification

HANDWHEEL BC6
GASKET GASKET 1
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

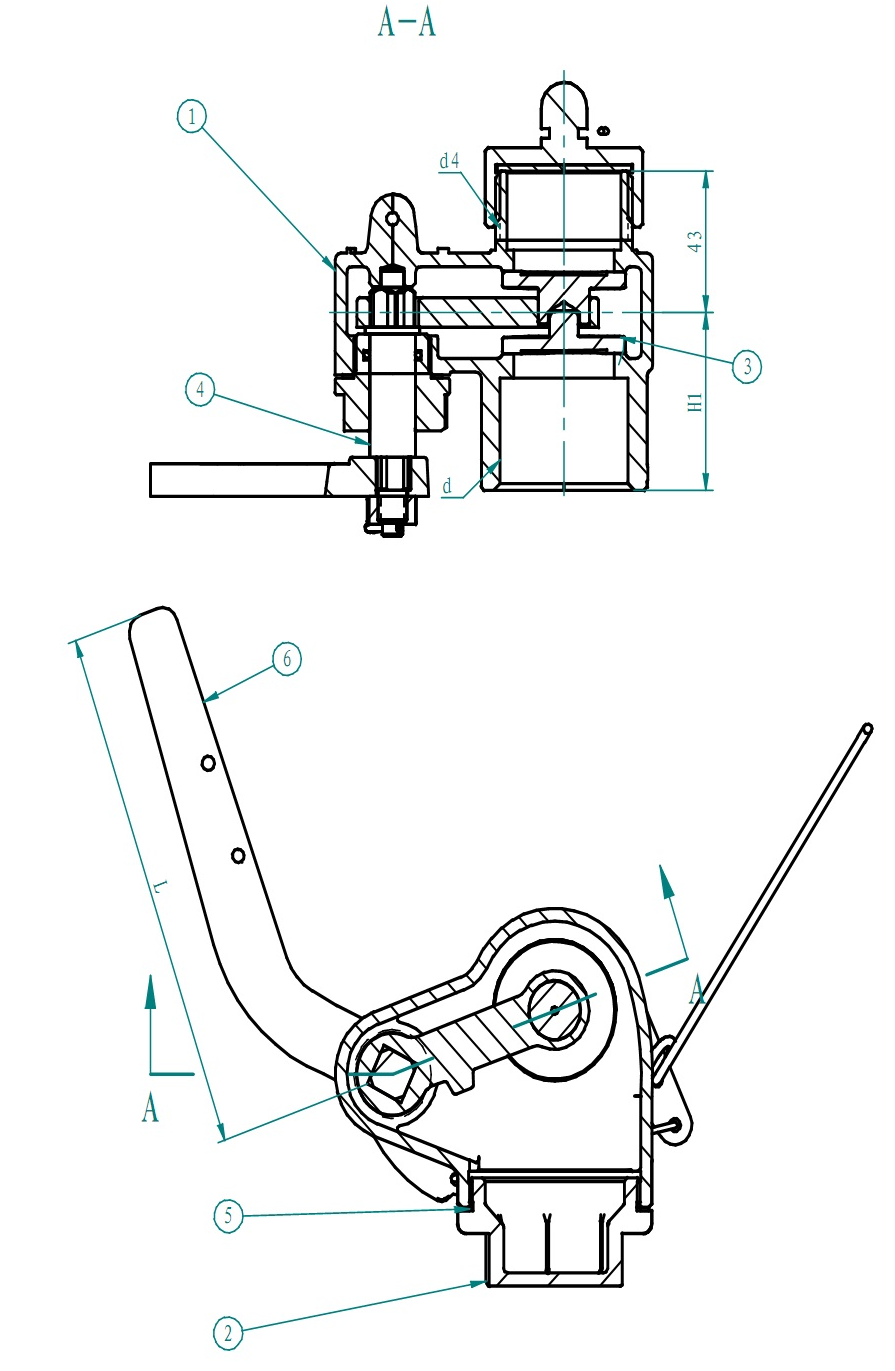

Product wireframe

Maintenance and Safety
Periodic maintainences and surveys of quick closing valve are absolutely essential. Checking the mechanism functions of the valve when the tank is not is used is necessary. Wires or remote operating system should be checked for slacking and oil levels respectively.
Quick closing valves should always be checked for open position. This can be done by turning the hand wheel in anticlockwise direction until the end of the stroke. The spindle nut will be stopped by the adjusting ring. Also, in order to ensure that the valve stays in the same position, trim gears are used.

Dimensions Data

DN D D4 H1 L
40 G11/2 G11/2 54 160
50 G2 G2 60 160
