JIS Cast Iron air vent head Featured Image
  • JIS Cast Iron air vent head

JIS Cast Iron air vent head


Product Detail

Product Tags

Product Description

IFLOW JIS cast iron exhaust tips are the ultimate solution for efficient, reliable exhaust in a variety of applications. Made from high-quality cast iron, this exhaust tip offers numerous advantages over traditional options.

IFLOW JIS cast iron exhaust tips are designed to withstand extreme conditions, ensuring long-lasting durability and corrosion resistance, providing a reliable solution to your exhaust needs. Its rugged construction and precision engineering make it a trustworthy choice in demanding environments.

With its superior design, the IFLOW JIS cast iron exhaust tip promotes optimal airflow, reduces pressure loss and maintains consistent air distribution throughout the system. This allows for quieter operation and improved energy efficiency, making it the best performing exhaust head.The versatility of IFLOW JIS cast iron exhaust tips

Specification

ITEM PART NAME MATERAL
1 BODY FC200
2 FLOAT BALL SUS316
3 GASKET NBR
4 SCREEN SS400

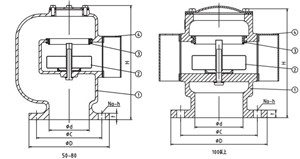

Product wireframe

 product

Dimensions Data

SIZE L D D1 D2 B C z-d H
40 140 150 110 84 16 3 4-19 203
50 150 165 125 99 20 3 4-19 220
65 170 185 145 118 20 3 4-19 245
80 180 200 160 132 22 3 8-19 280
100 190 220 180 156 22 3 8-19 331
125 200 250 210 184 24 3 8-19 396
150 210 285 240 211 24 3 8-19 438
200 230 340 295 268 26 3 12-23 513
250 250 405 355 320 28 3 12-28 612
300 270 460 410 370 28 3 12-28 689



Dimensions
DN d D C No. h t H
50 50 130 105 4 15 14 175
65 65 155 130 4 15 14 204
80 80 180 145 4 19 14 244
100 100 200 165 8 19 16 220
125 125 235 200 8 19 16 250
150 150 265 230 8 19 18 285
200 200 320 280 8 23 20 365
250 250 385 345 12 23 22 430
300 300 430 390 12 23 22 530
350 335 480 435 12 25 24 570
400 380 540 495 16 25 24 640
450 430 605 555 16 25 24 713
