JIS 7368 bronze 10k rising stem type gate valve Featured Image
  • JIS 7368 bronze 10k rising stem type gate valve
  • JIS 7368 bronze 10k rising stem type gate valve
  • JIS 7368 bronze 10k rising stem type gate valve

JIS 7368 bronze 10k rising stem type gate valve

F7368

Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410

Pressure: 5K, 10K, 16K

Size: DN15-DN300

Material: Castiron, caststeel, forgedsteel, brass, bronze

Type: Globevalve,anglevalve,

Media: Water, Oil, Steam


Product Detail

Product Tags

Product Description

The JIS 7368 bronze 10K rising stem type gate valve.This type of valve is designed to control the flow of fluid by the lifting and lowering of a gate or wedge, providing a straight-through unobstructed flow path when fully open.

The JIS 7368 bronze 10K gate valve is specifically rated for a pressure of 10 kilograms per square centimeter and features a rising stem, which allows for easy visual indication of the valve position.

It is constructed from bronze, which offers excellent corrosion resistance and durability, making it suitable for a wide range of applications, including marine and industrial use. The gate valve designation reflects its function and design as a gate valve, highlighting its importance in fluid control systems.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture conform to BS5163
· Flange dimensions conform to EN1092-2 PN16
· Face to face dimensions conform to BS5163
· Testing conform to BS516, 3EN12266-1
· Driving mode: Hand wheel, square cover

Specification

HANDWHEEL FC200
GASKET NON-ASBESTES
STEM C3771BD OR BE
DISC BC6
BONNET BC6
BODY BC6
NAME OF PART MATERIAL

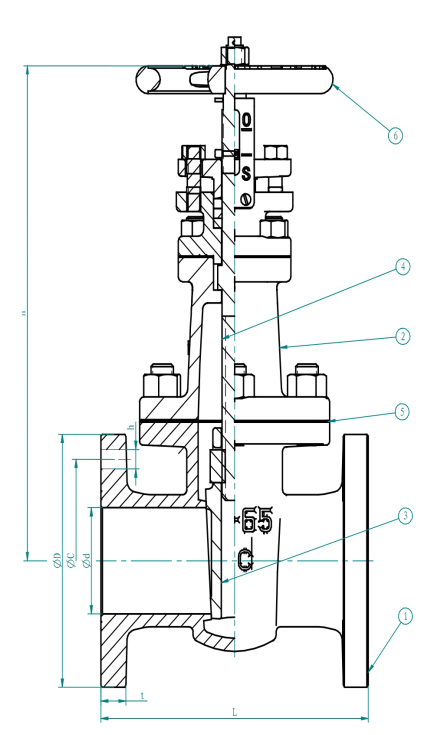

Product wireframe

Dimensions Data

DN d L D C NO. h t H D2
15 15 100 95 70 4 15 12 175 80
20 20 110 100 75 4 15 14 200 80
25 25 120 125 90 4 19 14 220 100
32 32 140 135 100 4 19 16 250 100
40 40 150 140 105 4 19 16 290 125
50 50 200 155 120 4 19 16 282 125
65 65 220 175 140 4 19 18 302 140
