High Performance Butterfly Valve
BFV-701/702-150-300
Product Description
Designed to excel in marine applications, IFLOW high performance butterfly valves offer a range of advantages for onboard use. These valves are engineered to withstand the harsh conditions and corrosive environments often encountered at sea, making them ideal for marine applications. High-strength construction and corrosion-resistant materials ensure long-term reliability, even in challenging offshore environments.
Its streamlined design and low weight make it particularly suitable for use in ship piping systems where space and weight considerations are critical. In addition, the valve’s simple operation and precise flow control provide an efficient and effective way to manage fluid systems on board ships.
With their high performance and reliability, IFLOW butterfly valves provide a trusted solution for shipowners and operators seeking to maintain safe and efficient fluid control systems on their vessels, contributing to the overall safety and performance of ship operations.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9003 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to API609
· Flange dimensions Conform to EN1092-1/ANSI B16.5
· Face to Face dimensions Conform to API609 Table 2B Class150
· Testing Conform to API 598
· Driving mode: lever, worm actuator, electric, pheumatic
Specification
| Part Name | Material |
| Body | ASTM A351 CF8M |
| Seat | PTFE |
| Disc | ASTM A351 CF8M |
| Seat Retainer Plate | ASTM A351 CF8M |
| Packing Washer | PTFE |
| Gland | ASTM A351 CF8M |
| Key | Carbon Steel |
| Mounting Plate | ASTM A351 CF8M |

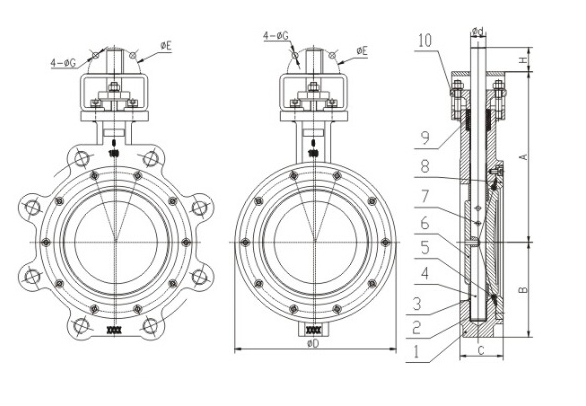

Product wireframe
Dimensions Data
| DN | A | B | ASME CLASS 150 | ASME CLASS 300 | ΦD | H | Φd | ΦE | 4-ΦG |
| C | |||||||||
| 2.5″ | 155 | 70 | 48 | 48 | 120 | 32 | 16 | 70 | 10 |
| 3″ | 175 | 76 | 48 | 48 | 130 | 32 | 16 | 70 | 10 |
| 4″ | 176 | 92 | 54 | 54 | 160 | 32 | 19 | 70 | 10 |
| 6″ | 225 | 125 | 57 | 59 | 215 | 32 | 20 | 70 | 10 |
| 8″ | 267 | 150 | 64 | 73 | 273 | 45 | 26 | 102 | 12 |
| 10″ | 276 | 175 | 71 | 83 | 325 | 45 | 32 | 125 | 13 |
| 12″ | 320 | 240 | 81 | 92 | 375 | 45 | 36 | 125 | 13 |
