BAL703
IFLOW floating ball valves are perfect for marine applications and offer a range of advantages making them the ideal solution for flow control in marine environments. Made from high-quality materials and precision engineering, this float valve is designed to withstand the harsh conditions of the marine environment, ensuring reliable performance and longevity. The corrosion-resistant design of IFLOW float valves makes them ideal for use in saltwater environments, providing durable and reliable flow control without the risk of deterioration.
Its sturdy construction and resistance to marine elements guarantee consistent functionality even in challenging conditions. The precise and responsive operation of float valves allows for precise level control, helping to efficiently and effectively manage water, fuel and other liquids on ships. This control helps prevent overfilling or drainage, thereby improving safety and operational efficiency.
The versatility and compatibility with a variety of marine systems make the IFLOW floating ball valve a valuable asset for marine applications. Whether used in bilge pump systems, ballast tanks or water treatment systems, its reliable performance and durable construction ensure smooth, trouble-free operation. Choose IFLOW floating ball valves for superior reliability, durability and precise fluid control in marine environments. Its rugged design and reliable operation make it an essential component for effective fluid management on board ships.
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9022 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Floating ball- The floating ball design is the most common type of ball valve. In this type, the ball is not fixed to the stem so a wide range of freedom is available. The upstream pressure helps create the seal by pushing the ball back against the rear or downstream seat.
Trunnion valves- The trunnion ball valve design has a pin securing the ball so it doesn’t dislodge. This design can be used for high velocity systems. Trunnion valves use a special segmented ball. The valve supports the ball with a shaft and the side opposite the shaft using another shaft or post. The shaft can be part of the ball or separate. Trunnion valves provide less friction between the ball and seal.
Nominal diameter(in) | NPS 1/2-8 | ||||||
Nominal pressure(Mpa) | Class150-Class600 | ||||||
MATERIAL | |||||||
NO | PART NAME | CARBON STEEL | STAINESS STELL | ||||
Material of parts | 1 | Body | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M | ASTM A351 CF3 | ASTM A351 CF3M |
2 | Stud | A193 B7M | A320 B8 | A320 B8M | A320 B8 | ASTM A182 B8M | |
3 | Ball | ASTMA105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
4 | Seat | PTFE/NYLON/PEEK/PPL | |||||
5 | Anti-fire gasket | SST+Graphite | |||||
6 | Bonnet | ASTMA105 | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
7 | Anti-static valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
8 | Stem | ASTM A 182 F6a | ASTM A182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
9 | Thrust bearing | PTFE | |||||
10 | Sliding bearing | PTFE | |||||
11 | O-ring | VITON | |||||
12 | Anti-fire gasket | SST+Graphite | |||||
13 | Seal gland | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
14 | Socket head cap screw | A197 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
15 | Packing | Graphite | |||||
16 | Packing bushing | ASTM A 182 F6a | ASTM A182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
17 | Packing gland | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | |
18 | Anti-fire packing | SST+Graphite | |||||
19 | Socket head cap screw | A197 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
20 | Retainer ring | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | |
21 | Hexagon nut | A194-2HM | A194-8 | A194-8M | A194-8 | A194-8M | |
Applicalbe service conditions | Applicable media | Water steam,oil,gas,liquefied gas,natural gas,etc | Nitric acidAcetic acid | Acetic acid | Strong Oxidizer | Urea | |
Applicalbe temperature | 120℃(PTFE).≤80℃(NYLON),≤250℃(PEEK), ≤250℃(PPL) | ||||||
Design and manufacturing | API 608,API6D | ||||||
Face-to face dimensions | ASME B16.10, API 6D | ||||||
Type of connection | Flange | ASME B16.5/ASME B16.47 | Bult welding | ASME B16.25 | |||
Pressure test | API598. API6D | ||||||
Transmission mode | Manual, worm and worm gear transmission, pneumatic, electric |

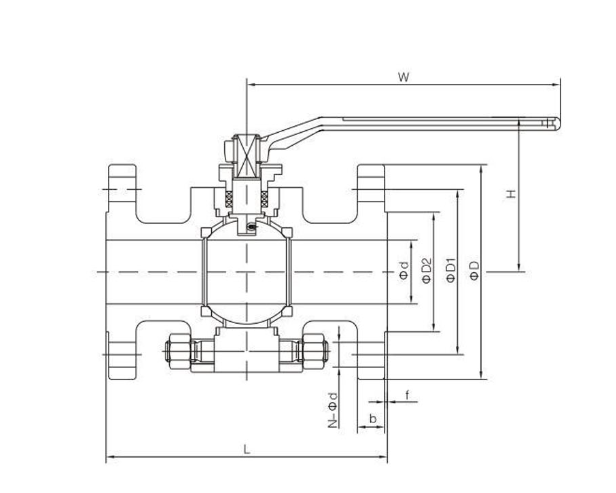

Dimensions data(mm)
Pressure rating | Nominal Diameter | d | Flange | Bult welding | Raised face flange | W | cast steel | forged steel | Weight(kg) | ||||||||
Class | NPS | DN | L(RF) | L(RTJ) | L(BW) | D | D1 | D2 | f | b | N-Φd | H | H | cast steel | forged steel | ||
150 | 1/2’’ | 15 | 13 | 108 | / | 140 | 90 | 60.5 | 35 | 2 | 9 | 4-Φ16 | 140 | 80 | 78 | 2 | △ |
3/4’’ | 20 | 19 | 117 | / | 152 | 100 | 70 | 43 | 2 | 10 | 4-Φ16 | 140 | 86 | 82 | 2.5 | △ | |
1’’ | 25 | 25 | 127 | / | 165 | 110 | 79.5 | 51 | 2 | 11 | 4-Φ16 | 140 | 98 | 95 | 3.5 | △ | |
1 1/4’’ | 32 | 32 | 140 | / | 178 | 115 | 89 | 64 | 2 | 11 | 4-Φ16 | 180 | 106 | 100 | 6.5 | △ | |
1 1/2’’ | 40 | 38 | 165 | / | 190 | 125 | 98.5 | 73 | 2 | 13 | 4-Φ16 | 180 | 133 | 128 | 7.5 | △ | |
2’’ | 50 | 50 | 178 | 191 | 216 | 150 | 120.5 | 92 | 2 | 14.5 | 4-Φ19 | 200 | 138 | 137 | 9 | △ | |
3’’ | 80 | 75 | 203 | 216 | 283 | 190 | 152.5 | 127 | 2 | 17.5 | 4-Φ19 | 300 | 175 | 148 | 19 | △ | |
4’’ | 100 | 100 | 229 | 241 | 305 | 230 | 190.5 | 157 | 2 | 22.5 | 8-Φ19 | 650 | 235 | 223 | 36 | △ | |
6’’ | 150 | 150 | 394 | 406 | 457 | 280 | 214.5 | 216 | 2 | 24 | 8-Φ22 | 800 | 285 | 278 | 78 | △ | |
8’’ | 200 | 201 | 457 | 470 | 521 | 345 | 295.5 | 270 | 2 | 27 | 8-Φ22 | 1000 | 342 | 336 | 160 | △ | |
300 | 1/2’’ | 15 | 13 | 140 | / | 140 | 95 | 66.5 | 35 | 2 | 13 | 4-Φ16 | 140 | 80 | 78 | 2.5 | △ |
3/4’’ | 20 | 19 | 152 | / | 152 | 115 | 82.5 | 43 | 2 | 14.5 | 4-Φ19 | 140 | 86 | 82 | 3.6 | △ | |
1’’ | 25 | 25 | 165 | / | 165 | 125 | 89 | 51 | 2 | 16 | 4-Φ19 | 140 | 98 | 95 | 5 | △ | |
1 1/4’’ | 32 | 32 | 178 | / | 178 | 135 | 98.5 | 64 | 2 | 17.5 | 4-Φ19 | 180 | 106 | 100 | 8.5 | △ | |
1 1/2’’ | 40 | 38 | 190 | / | 190 | 155 | 114.5 | 73 | 2 | 19.5 | 4-Φ22 | 180 | 133 | 128 | 10 | △ | |
2’’ | 50 | 50 | 216 | 232 | 216 | 165 | 127 | 92 | 2 | 21 | 8-Φ19 | 200 | 138 | 137 | 12 | △ | |
3’’ | 80 | 75 | 283 | 298 | 293 | 210 | 168.5 | 127 | 2 | 27 | 8-Φ22 | 300 | 175 | 148 | 28 | △ | |
4’’ | 100 | 100 | 305 | 321 | 305 | 255 | 200 | 157 | 2 | 30.5 | 8-Φ22 | 650 | 235 | 223 | 46 | △ | |
6’’ | 150 | 150 | 403 | 419 | 457 | 320 | 270 | 216 | 2 | 35 | 12-Φ22 | 800 | 285 | 278 | 104 | △ | |
8’’ | 200 | 201 | 502 | 518 | 521 | 380 | 330 | 270 | 2 | 40 | 12-Φ25 | 1000 | 342 | 336 | 208 | △ | |
600 | 1/2’’ | 15 | 13 | 165 | / | 165 | 95 | 66.5 | 35 | 7 | 14.5 | 4-Φ16 | 140 | 78 | 68 | 5 | △ |
3/4’’ | 20 | 19 | 190 | / | 190 | 115 | 52.5 | 43 | 7 | 16 | 4-Φ19 | 140 | 80 | 76 | 7 | △ | |
1’’ | 25 | 25 | 216 | / | 216 | 125 | 89 | 51 | 7 | 17.5 | 4-Φ19 | 180 | 110 | 106 | 9 | △ | |
1 1/4’’ | 32 | 32 | 229 | / | 229 | 135 | 98.5 | 64 | 7 | 21 | 4-Φ19 | 200 | 115 | 110 | 13 | △ | |
1 1/2’’ | 40 | 38 | 241 | / | 241 | 155 | 114.5 | 73 | 7 | 22.5 | 4-Φ22 | 250 | 135 | 128 | 17 | △ | |
2’’ | 50 | 50 | 292 | 295 | 292 | 165 | 127 | 92 | 7 | 26 | 8-Φ19 | 300 | 152 | 140 | 21 | △ | |
3’’ | 80 | 75 | 356 | 359 | 356 | 210 | 168.5 | 127 | 7 | 32 | 8-Φ22 | 650 | 224 | 213 | 43 | △ | |
4’’ | 100 | 100 | 432 | 435 | 432 | 275 | 216 | 157 | 7 | 38.5 | 8-Φ25 | 800 | 248 | 238 | 85 | △ |
Please consult the factory:
Note:The weight value is only for flanged valve.Please consult our factory for higher nominal diameter or weight.Any ,modification to size H,H1 and weight will not be notified otherwise.
