Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Testing: API 598-2004
· Flange dimensions Conform to EN1092-1/ANSI B16.5
· Working temperature:10℃-180℃
· Working pressure: 4Bar-20Bar
Specification
| Part Name | Material |
| Sealing Gasket | PTFE |
| Bonnet | SS316/WCB |
| Bolt and nut | B838 |
| Body | SS316/WCB |
| Glass | Borosilicate |
| Spinner | SS316 |
| Pin | SS304 |

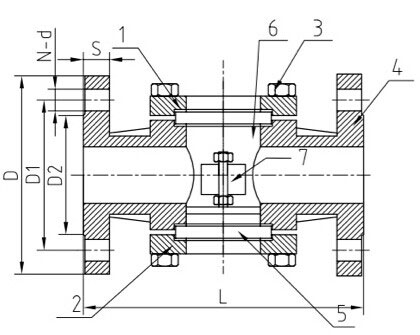

Product wireframe
Dimensions Data
Dimensions data(mm)
| DN | L | D | D1 | D2 | S | N-D | GLASS |
| 1/2″ | 130 | 90 | 60.3 | 34.9 | 9.6 | 4-15.7 | φ45X6 |
| 3/4″ | 150 | 100 | 69.9 | 42.9 | 11.2 | 4-15.7 | φ45X6 |
| 1″ | 160 | 110 | 79.4 | 50.8 | 12.7 | 4-15.7 | φ65X10 |
| 2″ | 230 | 150 | 120.7 | 92.1 | 17.5 | 4-19.1 | φ95X15 |
