EN 593 PN10/PN16/CLASS 125/ LUG TYPE SPLINE SHAFT BUTTERFLY VALVE
BFV304S 304L
Product Description
IFLOW EN593 PN10/PN16/CLASS 125 Lug Type Spline Shaft Butterfly Valve is a valve product with many features. First of all, the valve complies with various standards such as EN 593, PN10, PN16 and CLASS 125, and has a wide range of applications. Secondly, it has a Lug Type design, which is easy to install and maintain, helping to improve work efficiency.
In addition, the use of Spline Shaft technology makes the valve operate more smoothly and have a longer service life. In addition, the valve adopts a butterfly plate structure, which can achieve rapid opening and closing operations and is suitable for controlling fluid media. In addition, the product uses high-quality materials and advanced manufacturing processes, has high corrosion resistance and sealing properties, and can operate stably in harsh working environments.
In short, IFLOW EN 593 PN10/PN16/CLASS 125 Lug Type Spline Shaft Butterfly Valve has a reasonable structure, excellent performance, and a wide range of applications. It is a versatile and reliable valve product.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to EN593, API609
· Flange dimensions Conform to EN1092-2/ANSI B16.1
· Face to Face dimensions Conform to EN558-1
· Face to Face dimensions Conform to AWWA C504 Short Body
· Testing Conform to EN12266-1, API 598
· Driving mode: lever, worm actuator, electric, pheumatic
Specification
| Part Name | Material |
| Body | DI |
| Down Bearing | F4 |
| Seat | NBR |
| Disc | Plated Ductile Iron |
| Shaft | ASTM A276 416 |
| Middle Bearing | F4 |
| Upper Bearing | F4 |
| O Ring | NBR |

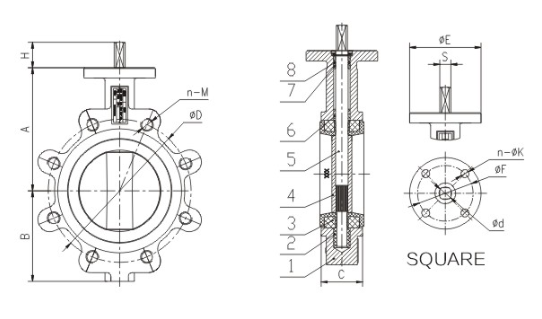

Product wireframe
Dimensions Data
| DN | A | B | C | H | ΦE | ΦF | N-ΦK | Φd | G | EN1092-2 PN10 | EN1092-2 PN16 | ANSI CLASS 125 | ||||||
| ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ||||||||||
| DN40 | 120 (140) | 75 | 33 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 110 | 4-Φ19 | 4-M16 | 110 | 4-Φ19 | 4-M16 | 98.5 | 4-Φ16 | 4-1/2″ |
| DN50 | 124 (161) | 80 | 43 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 125 | 4-Φ19 | 4-M16 | 125 | 4-Φ19 | 4-M16 | 120.5 | 4-Φ19 | 4-5/8″ |
| DN65 | 134 (175) | 89 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 145 | 4-Φ19 | 4-M16 | 145 | 4-Φ19 | 4-M16 | 139.5 | 4-Φ19 | 4-5/8″ |
| DN80 | 141 (181) | 95 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 160 | 8-Φ19 | 8-M16 | 160 | 8-Φ19 | 8-M16 | 152.5 | 4-Φ19 | 4-5/8″ |
| DN100 | 156 (200) | 114 | 52 | 32 | 90 | 70 | 4-Φ10 | 15.8 | 11.1 | 180 | 8-Φ19 | 8-M16 | 180 | 8-Φ19 | 8-M16 | 190.5 | 8-Φ19 | 8-5/8″ |
| DN125 | 168 (213) | 127 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 210 | 8-Φ19 | 8-M16 | 210 | 8-Φ19 | 8-M16 | 216 | 8-Φ22 | 8-3/4″ |
| DN150 | 184 (226) | 140 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 240 | 8-Φ23 | 8-M20 | 240 | 8-Φ23 | 8-M20 | 241.5 | 8-Φ22 | 8-3/4″ |
| DN200 | 213 (260) | 175 | 60 | 45 | 125 | 102 | 4-Φ12 | 22.1 | 15.9 | 295 | 8-Φ23 | 8-M20 | 295 | 12-Φ23 | 12-M20 | 298.5 | 8-Φ22 | 8-3/4″ |
| DN250 | 244 (292) | 220 | 68 | 45 | 125 | 102 | 4-Φ12 | 28.45 | 22 | 350 | 12-Φ23 | 12-M20 | 355 | 12-Φ28 | 12-M24 | 362 | 12-Φ25 | 12-7/8″ |
| DN300 | 283 (337) | 255 | 78 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 24 | 400 | 12-Φ23 | 12-M20 | 410 | 12-Φ28 | 12-M24 | 432 | 12-Φ25 | 12-7/8″ |
| DN350 | 368 | 267 | 78 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 24 | 460 | 16-Φ23 | 16-M20 | 470 | 16-Φ28 | 16-M24 | 476 | 12-Φ29 | 12-1″ |
| DN400 | 400 | 323 | 102 | 50 | 150 | 125 | 4-Φ14 | 33.15 | 27 | 515 | 16-Φ28 | 16-M24 | 525 | 16-Φ31 | 16-M27 | 539.5 | 16-Φ29 | 16-1″ |
| DN450 | 422 | 342 | 114 | 50 | 210 | 140 | 4-Φ18 | 37.95 | 27 | 565 | 20-Φ28 | 20-M24 | 585 | 20-Φ31 | 20-M27 | 578 | 16-Φ32 | 16-11/8″ |
| DN500 | 479 | 373 | 127 | 60 | 210 | 140 | 4-Φ18 | 41.12 | 32 | 620 | 20-Φ28 | 20-M24 | 650 | 20-Φ34 | 20-M31 | 635 | 20-Φ32 | 20-11/8″ |
| DN600 | 562 | 467 | 154 | 70 | 210 | 165 | 4-Φ22 | 50.62 | 36 | 725 | 20-Φ31 | 20-M27 | 770 | 20-Φ37 | 20-M33 | 749.5 | 20-Φ35 | 20-11/4″ |
