EN 593 PN10/PN16/CLASS 125/ DOUBLE SHAFT BUTTERFLY VALVE
BFV305 306
Product Description
IFLOW butterfly valves with vulcanized seats are critical components in marine applications, providing reliable and efficient control of fluid flow in shipboard systems. Its dual-axis design increases stability and precision, making it ideal for marine environments where consistent performance is critical for safe and efficient operation.
The valve is constructed with a vulcanized seat and is designed to withstand the harsh conditions encountered at sea, including exposure to salt water, extreme temperatures and corrosive elements. Vulcanized valve seats ensure a tight and reliable seal, minimizing the risk of leakage and maintaining optimal operating efficiency even in challenging offshore conditions.
With its durable construction and advanced sealing technology, IFLOW butterfly valves with vulcanized seats are the ideal solution for a variety of marine applications, including shipboard piping systems, ballast water management and seawater cooling systems. Its proven performance and rugged design make it the trusted choice for ensuring safety, efficiency and reliability of fluid control in offshore operations.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture Conform to EN593, API609
· Flange dimensions Conform to EN1092-2/ANSI B16.1
· Face to Face dimensions Conform to EN558-1
· Face to Face dimensions Conform to AWWA C504 Short Body
· Testing Conform to EN12266-1, API 598
· Driving mode: lever, worm actuator, electric, pheumatic
Specification
| Part Name | Material |
| Body | DI |
| Down Bearing | F4 |
| Seat | NBR |
| Disc | Plated Ductile Iron |
| Upper Shaft | ASTM A276 416 |
| Middle Bearing | F4 |
| O Ring | NBR |
| Upper Bearing | F4 |
| Down Shaft | ASTM A276 416 |
| Retaining Pin | ASTM A276 416 |

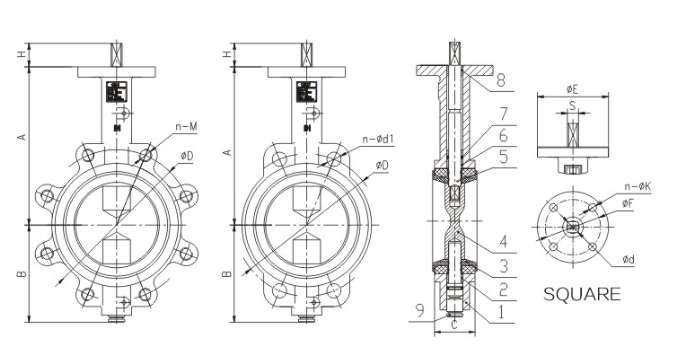

Product wireframe
Dimensions Data
| DN | A | B | C | H | ΦE | ΦF | N-ΦK | Φd | G | EN1092-2 PN10 | EN1092-2 PN16 | ANSI CLASS 125 | ||||||
| ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ||||||||||
| DN40 | 120 (140) | 75 | 33 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 110 | 4-Φ19 | 4-M16 | 110 | 4-Φ19 | 4-M16 | 98.5 | 4-Φ16 | 4-1/2″ |
| DN50 | 124 (161) | 80 | 43 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 125 | 4-Φ19 | 4-M16 | 125 | 4-Φ19 | 4-M16 | 120.5 | 4-Φ19 | 4-5/8″ |
| DN65 | 134 (175) | 89 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 145 | 4-Φ19 | 4-M16 | 145 | 4-Φ19 | 4-M16 | 139.5 | 4-Φ19 | 4-5/8″ |
| DN80 | 141 (181) | 95 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 160 | 8-Φ19 | 8-M16 | 160 | 8-Φ19 | 8-M16 | 152.5 | 4-Φ19 | 4-5/8″ |
| DN100 | 156 (200) | 114 | 52 | 32 | 90 | 70 | 4-Φ10 | 15.8 | 11.1 | 180 | 8-Φ19 | 8-M16 | 180 | 8-Φ19 | 8-M16 | 190.5 | 8-Φ19 | 8-5/8″ |
| DN125 | 168 (213) | 127 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 210 | 8-Φ19 | 8-M16 | 210 | 8-Φ19 | 8-M16 | 216 | 8-Φ22 | 8-3/4″ |
| DN150 | 184 (226) | 140 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 240 | 8-Φ23 | 8-M20 | 240 | 8-Φ23 | 8-M20 | 241.5 | 8-Φ22 | 8-3/4″ |
| DN200 | 213 (260) | 175 | 60 | 45 | 125 | 102 | 4-Φ12 | 22.1 | 15.9 | 295 | 8-Φ23 | 8-M20 | 295 | 12-Φ23 | 12-M20 | 298.5 | 8-Φ22 | 8-3/4″ |
| DN250 | 244 (292) | 220 | 68 | 45 | 125 | 102 | 4-Φ12 | 28.45 | 22 | 350 | 12-Φ23 | 12-M20 | 355 | 12-Φ28 | 12-M24 | 362 | 12-Φ25 | 12-7/8″ |
| DN300 | 283 (337) | 255 | 78 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 24 | 400 | 12-Φ23 | 12-M20 | 410 | 12-Φ28 | 12-M24 | 432 | 12-Φ25 | 12-7/8″ |
