DIN3356 PN16 Cast Iron Globe Valve Featured Image
  • DIN3356 PN16 Cast Iron Globe Valve

DIN3356 PN16 Cast Iron Globe Valve

GLV501-PN16

Standards: Standard:DIN3356，EN13789

Medium:water

size:DN50-DN300

Flange standard: En1092-2 PN16

Face to face dimension: EN558-1 list 1

Driving mode:handwheel,bevel gear


Product Detail

Product Tags

Product Description

The DIN3356 PN16 Cast Iron Globe Valve is designed for high performance and durability. Its cast iron construction provides excellent corrosion resistance and longevity, making it suitable for harsh environments. The valve’s PN16 rating indicates its capability to handle medium to high pressures with ease. Its precise regulation of fluid flow ensures efficient control and stability.

The bellow design ensures effective sealing, preventing leaks and making it suitable for high-pressure applications. This valve’s compact design allows for easy installation and maintenance, and it is well-suited for use in a variety of industrial applications, such as power plants and chemical processes.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· Design and Manufacture Conform to DIN EN 13789
· Flange dimensions Conform to EN1092-2 PN16
· Face to Face dimensions Conform to EN558-1 list 1
· Testing Conform to EN12266-1

Specification

Part Name Material
Body EN-JL1040
Disc EN-JL1040
Seat ring 1Cr13/ZCuZn38Mn2Pb2
Stem 2Cr13
Bonnet EN-JL1040
Packing Graphite
Stem nut ZCuZn38Mn2Pb2
Handwheel QT400-18/STEEL

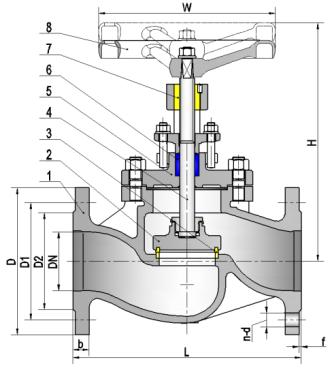

Product wireframe

Dimensions Data

DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
D 95 105 115 140 150 165 185 200 220 250 285 340 405 460
D1 65 75 85 100 110 125 145 160 180 210 240 295 355 410
D2 46 56 65 76 84 99 118 132 156 184 211 266 319 370
b 14 16 16 18 18 20 20 22 24 26 26 30 32 32
n-d 4-14 4-14 4-14 4-19 4-19 4-19 4-19 8-19 8-19 8-19 8-23 12-23 12-28 12-28
f 2 2 3 3 3 3 3 3 3 3 3 3 3 4
H 206 206 217 245 250 275 294 325 377 453 530 635 690 750
W 100 100 120 160 160 200 200 240 280 320 400 450 450 500
