DIN3352 Ductile iron gate valve F4 NRS bronze trim with indicator class approved

NO.5

Material:GGG25, GGG40, GGG40.3

Pressure:CLASS 125-300/PN10-25/200-300PSI

Driving: Handwheel,bevel gear


Product Detail

Product Tags

Product Description

IFLOW DIN3352 ductile iron gate valve F4, specially designed for marine applications and certified by classification societies. Constructed from top quality ductile iron with bronze accents and clear indicators, this gate valve provides superior performance, reliability and safety in offshore environments. The concealed rod (NRS) design is precision engineered to ensure smooth operation and easy maintenance, making it ideal for marine fluid control systems.

Bronze valve trim enhances the valve's corrosion and wear resistance, extending its service life in harsh offshore operating conditions. With its classification society-approved certification, the gate valve meets and exceeds industry standards for marine applications, ensuring compliance and safety for critical offshore operations.

Built-in indicators provide clearly visible status updates for seamless monitoring and operation even in challenging marine environments. For superior flow control in marine environments, the IFLOW DIN3352 Ductile Iron Gate Valve F4 with NRS, bronze trim and class approval is a reliable choice. Designed to withstand the rigors of offshore operations, this premium gate valve improves the performance and reliability of your ship's systems.

Features

Product Overview

1.Design conforms to DIN 1171.
2.Face to face dimensions conform to EN558.1 F14
3.Flanges drilled to EN1092-2 PN10/16.
4. Suitable media: Water
5.Suitable temperature:-30 C-200 C.
6.Test according to EN12266-1 grade C.

product_img (4)
product_img (5)

Technical Requirement

· Design and Manufacture conform to AWWA C509/515
· Flange dimensions conform to ANSI B16.1
· Face to Face dimensions conform to ANSI B16.10
· Testing conform to AWWA C509/515
· Driving mode: Square cover

Specification

SIZE L D D1 D2 B C z-d H
40 140 150 110 84 16 3 4-19 203
50 150 165 125 99 20 3 4-19 220
65 170 185 145 118 20 3 4-19 245
80 180 200 160 132 22 3 8-19 280
100 190 220 180 156 22 3 8-19 331
125 200 250 210 184 24 3 8-19 396
150 210 285 240 211 24 3 8-19 438
200 230 340 295 268 26 3 12-23 513
250 250 405 355 320 28 3 12-28 612
300 270 460 410 370 28 3 12-28 689

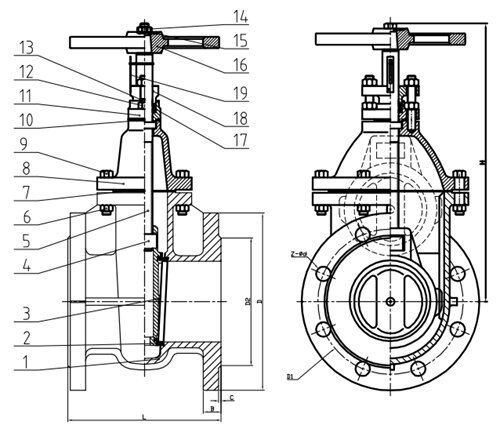

spe

Dimensions Data

NO. PART NAME MATERIAL MATERIAL STANDARD
1 BODY DUCTILE IRON GGG40.3
2 BODY SEAT RING CAST BRONZE CC491K
3 WEDGE DUCTILE IRON+BRONZE GGG40.3+CC491K
4 WEDGE BUSHING CAST BRASS ASTM B584
5 STEM BRASS CW710R
6 NUTS STEEL ASTM A307 B
 7 BODY GASKET GRAPHITE
8 BONNET DUCTILE IRON GGG40.3
9 BOLTS STEEL ASTM A307 B
10 GASKET RUBBER GRAPHITE
11 STUFFING BOX DUCTILE IRON GGG40.3
12 NUTS STEEL ASTM A307 B
13 BOLTS STEEL ASTM A307 B
14 BOLTS STEEL ASTM A307 B
15 WASHER STEEL ASTM A307 B
16 HANDWHEEL CAST IRON GG25
17 PACKING GRAPHITE
18 PACKING GLAND DUCTILE IRON GGG40.3
19 INDICATOR CAST BRONZE CC491K
