DIN PN16 Ductile iron globe valve with bronze trim

NO.3

Product Detail

Product Tags

Product Description

Globe valves have linear motion functionality and can stop, start, and regulate the flow of media. Predominantly used for isolating or throttling the media flow in a pipe stream, globe valves see great use in turbine seals, feeding and extraction systems, cooling systems, and fuel systems that require regulated flow.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

Technical Requirement

· Design STANDARD: DIN 86251 STOP type(DIN 3356)
· DESCRIPTION: iron body, metal seated screw down stop valve with
rising stem, bolted bonnet. Raised face flanged connection.
· APPLICATION: Aboard ships for hot and cold
water, oil and steam.
· Testing Conform to EN12266-1

Specification

Part Name	Material
Body	Nodular Cast lron
Bonnet	Nodular Cast lron
Seat	Bronze
Disc(<=65)	Bronze
Disc((=80))	Nodular Cast lron
Stem	Brass
Gland Packing	Graphite
Bonnet Gasket	Graphite
Stud Bolt	Steel
Nut	Steel
Hand Wheel	Cast lron

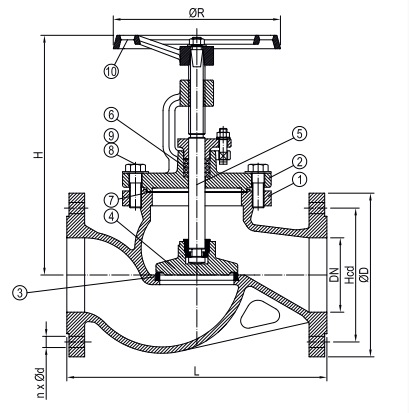

Product wireframe

Dimensions Data

DN	n x od	Hcd	θD	L	H	θR	Kg
15	4×14	65	95	130	165	120	4
20	4×14	75	105	150	165	120	4
25	4×14	85	115	160	175	140	5
32	4×18	100	140	180	180	140	7
40	4×18	110	150	200	220	160	11
50	4×18	125	165	230	230	160	13
65	4×18	145	185	290	245	180	18
80	8×18	160	200	310	295	200	25
100	8×18	180	220	350	330	225	35
125	8×18	210	250	400	365	250	25
150	8×18	240	285	480	420	300	75
200	8×22	295	340	600	510	400	135
250	12×22	350	395	730	600	215	215
300	12×22	400	445	850	670	520	305
350	16×22	460	505	980	755	640	405
400	16×26	515	565	1100	835	640	550
450	20×26	565	615	1200	920	640	690
500	20×26	620	670	125o	970	640	835
600	20*30	725	780	1450	1200	640	1050
