IFLOW DIN Ductile Iron Exhaust Heads are the ultimate choice for efficient and reliable exhaust in a variety of industrial and commercial environments. Our exhaust tips offer numerous benefits, making them the preferred solution for your exhaust needs. IFLOW DIN vent heads are constructed from high-quality ductile iron, ensuring exceptional durability and corrosion resistance, making them a reliable and long-lasting choice in harsh environments. Its rugged construction and precision engineering ensure reliability and performance in challenging conditions.
The advanced design of IFLOW DIN ductile iron exhaust tips promotes superior airflow and minimizes pressure loss, ensuring optimal system efficiency and quiet operation. Its best-in-class performance helps save energy and achieve consistent air distribution throughout the system.
IFLOW DIN ductile iron vent heads are versatile and adaptable and can be seamlessly integrated into a variety of ventilation systems, providing flexibility and ease of installation. With its unparalleled reliability, durability and performance, it sets new standards for superior ventilation solutions. For superior exhaust performance, unparalleled durability and seamless integration, trust IFLOW DIN Ductile Iron Exhaust Heads to meet and exceed your exhaust requirements, setting the benchmark for quality and reliability in the industry.

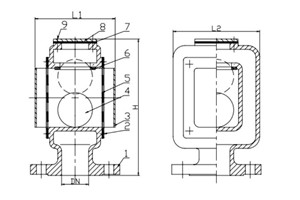

ITEM | PART NAME | MATERAL |
1 | BODY | NODULAR CAST IRON |
2 | BOLT | SUS304 |
3 | SIDE COVER | STEEL Q235-B |
4 | FLOAT BALL | PE |
5 | SCREEN | SUS304 |
6 | SEAT | Neoprene |
7 | GASKET | NBR |
8 | TOP COVER | STEEL Q235-B |
9 | BOLT | SUS304 |
Dimensions | |||
Size | L1 | L2 | H |
DN50 | 138 | 160 | 253 |
DN65 | 154 | 200 | 288 |
DN80 | 184 | 225 | 328 |
DN100 | 234 | 275 | 384 |
DN125 | 271 | 325 | 444 |
DN150 | 289 | 370 | 514 |
DN200 | 370 | 495 | 634 |
DN250 | 420 | 620 | 754 |
DN300 | 474 | 720 | 810 |
DN350 | 613 | 758 | 1010 |
DN450 | 687 | 990 | 1100 |
SIZE | L | D | D1 | D2 | B | C | z-d | H |
40 | 140 | 150 | 110 | 84 | 16 | 3 | 4-19 | 203 |
50 | 150 | 165 | 125 | 99 | 20 | 3 | 4-19 | 220 |
65 | 170 | 185 | 145 | 118 | 20 | 3 | 4-19 | 245 |
80 | 180 | 200 | 160 | 132 | 22 | 3 | 8-19 | 280 |
100 | 190 | 220 | 180 | 156 | 22 | 3 | 8-19 | 331 |
125 | 200 | 250 | 210 | 184 | 24 | 3 | 8-19 | 396 |
150 | 210 | 285 | 240 | 211 | 24 | 3 | 8-19 | 438 |
200 | 230 | 340 | 295 | 268 | 26 | 3 | 12-23 | 513 |
250 | 250 | 405 | 355 | 320 | 28 | 3 | 12-28 | 612 |
300 | 270 | 460 | 410 | 370 | 28 | 3 | 12-28 | 689 |
