Class 150 bronze 10K globe valves open/close indicator
NO.99
Product Description
The Class 150 bronze 10K globe valve with open/close indicator offers reliable performance in demanding environments. Constructed from durable bronze, it provides excellent corrosion resistance and is suitable for a wide range of applications. With its Class 150 rating, this valve is designed to handle moderate pressure environments effectively.
The open/close indicator feature allows for easy monitoring and control of the valve’s operation. Its globe valve design ensures accurate and precise flow regulation, making it ideal for various industrial processes. Whether used in oil and gas, marine, or chemical industries, this valve delivers consistent and efficient performance, contributing to enhanced operational reliability.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· DESIGN STANDARD
· TEST:JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY:2.1br />
· SEAT:1.54-0.4
Specification
| HANDWHEEL | FC200 |
| STEM | C3771BD OR BE |
| DISC | C3771BD OR BE |
| BONNET | C3771BD OR BE |
| BODY | BC6 |
| NAME OF PART | MATERIAL |

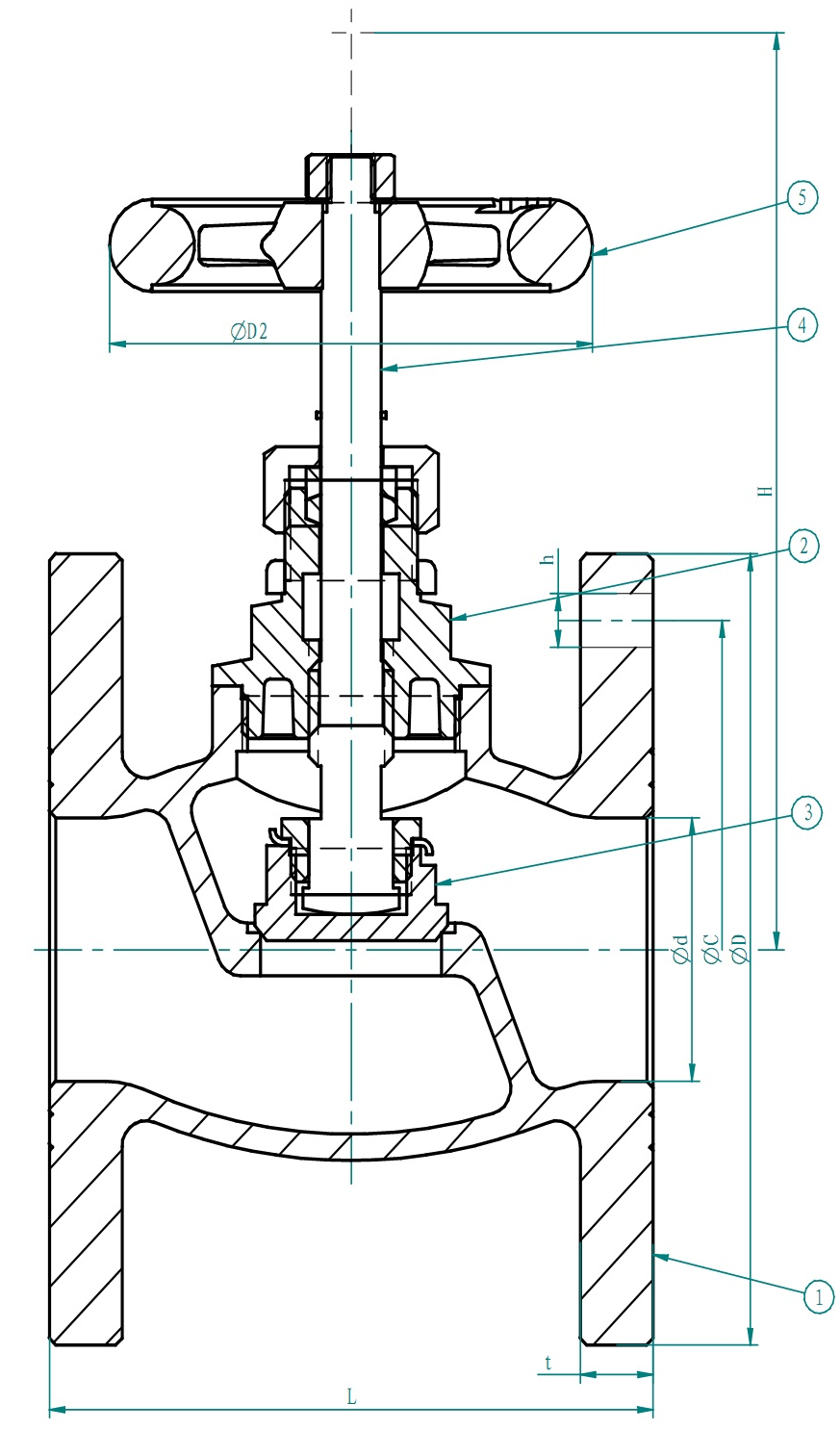

Product wireframe
Dimensions Data
| DN | d | L | D | C | NO. | h | t | H | D2 |
| 15 | 15 | 60 | 95 | 70 | 4 | 12 | 8 | 77 | 50 |
| 20 | 20 | 70 | 100 | 75 | 4 | 15 | 9 | 88 | 65 |
| 25 | 25 | 80 | 125 | 90 | 4 | 19 | 10 | 89 | 65 |
| 32 | 32 | 100 | 135 | 100 | 4 | 19 | 11 | 110 | 80 |
| 40 | 40 | 100 | 140 | 105 | 4 | 19 | 12 | 126 | 80 |
| 50 | 50 | 120 | 155 | 120 | 4 | 19 | 13 | 139 | 100 |
| 65 | 65 | 140 | 175 | 140 | 4 | 19 | 13 | 154 | 125 |
