BS5150 PN16 NRS Cast Iron Gate Valve
GAV401-PN16
Product Description
The BS5150 PN16 NRS Cast Iron Gate Valve operates on the principle of linear motion to control the flow of fluids. It consists of a gate or wedge which moves perpendicular to the flow direction to either allow or block the fluid flow. When the valve is opened, the gate is lifted to allow the fluid to pass through the valve. Conversely, when the valve is closed, the gate is lowered to block the flow.
This type of valve provides a tight seal when fully closed, and is suitable for full flow or no flow applications. The robust construction and high-quality materials used in this valve make it well-suited for applications requiring reliable and efficient flow control in industries such as water treatment, HVAC, and general industrial processes.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Design and Manufacture conform to BS EN1171/BS5150
· Flange dimensions conform to EN1092-2 PN16
· Face to Face dimensions conform to EN558-1 List 3
· Testing conform to EN12266-1
· Driving mode: hand wheel, bevel gear, gear, electric
Specification
| Body | EN-GJL-250 |
| SEAT RING | ASTM B62 |
| WEDGE RING | ASTM B62 |
| WEDGE | EN-GJL-250 |
| STEM | ASTM A276 420 |
| BOLT | CARBON STEEL |
| NUT | CARBON STEEL |
| BONNET GASKET | GRAPHITE+STEEL |
| BONNET | EN-GJL-250 |
| PACKING | GRAPHITE |
| PACKING GLAND | EN-GJL-250 |
| HANDWHEEL | EN-GJL-500-7 |

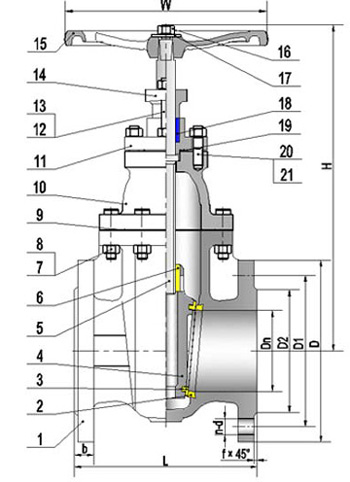

Product wireframe
Dimensions Data
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 |
| L | 177.8 | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406 | 432 | 457 | 508 | 610 | 660 | 711 | 813 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 | 910 | 1025 | 1125 | 1255 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 | 840 | 950 | 1050 | 1170 |
| D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 | 794 | 901 | 1001 | 1112 |
| b | 20 | 20 | 22 | 24 | 26 | 26 | 30 | 32 | 32 | 36 | 38 | 40 | 42 | 48 | 54 | 58 | 62 | 66 |
| n-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | 12-28 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 | 24-37 | 24-41 | 28-41 | 28-44 |
| f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 |
| H | 312 | 325 | 346 | 410 | 485 | 520 | 625 | 733 | 881 | 1002 | 1126 | 1210 | 1335 | 1535 | 1816 | 2190 | 2365 | 2600 |
| W | 200 | 200 | 200 | 255 | 306 | 306 | 360 | 406 | 406 | 508 | 558 | 610 | 640 | 640 | 700 | 700 | 800 | 900 |
