Bronze fire valve


Product Detail

Product Tags

Product Description

Air Vent Head which is installed on the vessel is required strict design and function according to classification regulation and in order not to be flowed in tank by seawater.As the exisiting method is that the face of gasket and float is touched directly,The leakage occurs between gasket and float For the vessel safety,the junction method of gasket and float has been consequently improved.Therefore an flexible snap lip is seated in the lower part of gasket,sealed tightly and prevented from flooding of the vessel.

IFLOW bronze fire valves provide long-term reliability and peace of mind for immediate action when it matters most. It is worth noting that this valve has precise flow control function, which can adjust the water flow to effectively extinguish fire. Its intuitive operation and low maintenance requirements make it a practical and cost-effective choice for fire protection systems, ensuring readiness and reliability in emergency situations.

Rely on the superior performance and quality of IFLOW bronze fire valves to enhance the safety of your property. With its sturdy construction and reliable functionality, the valve becomes a reliable guardian against fire threats, providing confidence and peace of mind in critical moments. Choose IFLOW bronze fire valves and get unparalleled fire protection you can trust.

The most common hose valve blocks the water inside it with a wedge-shaped piece attached to the knob. After screwing a garden hose onto the end of the valve, the handle is turned which lifts the wedge out of the way and allows the water to flow through. The further the wedge is lifted, the more room the water has to pass through the valve, thus increasing the water pressure. Twisting the handle closed blocks the flow of water. When the valve is open, the water will run out the end of the hose unless a hose attachment has been added to stop the water flow.

Features

Product Overview

The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

product_overview_r
product_overview_r

Technical Requirement

· DESIGN STANDARD:JIS F 7347-1996
· TEST: JIS F 7400-1996
· TEST PRESSURE/MPA
· BODY: 1.05br />
· SEAT: 0.77

Specification

Item PART NAME MATERAL
1 BODY BC6
2 BONNET BC6
3 DISC BC6
4 STEM    BRASS
5 GLAND PACKING BC6
6 GASKET    NON-ASBESTOS
7 HANDWHEEL FC200

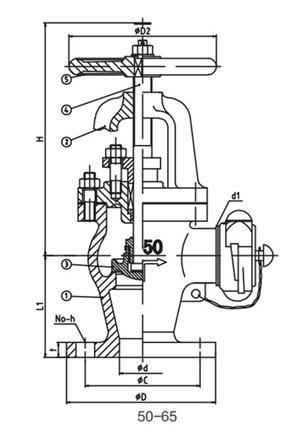

Product wireframe

 pro

Dimensions Data

Dimensions
DN d L D C No. h t H D2 L1 d1
5K50 50 155 130 105 4 15 14 240 160 100 M64×2
10K50 50 160 155 120 4 19 16 255 160 120 M64×2
10K65 65 180 175 140 4 19 18 270 200 130  M80×2
