BRONZE BALL VALVE with BSPT/NPT threading end
BAL102
Product Description
IFLOW bronze ball valves with BSPT/NPT threaded ends are a reliable solution for controlling fluid flow in a variety of applications. Made from high-quality bronze, this ball valve offers excellent corrosion resistance and durability, ensuring reliable performance in demanding environments. Its BSPT/NPT threaded ends provide a safe, leak-free connection, making installation and maintenance easy and efficient.
Designed for PN25 pressure class, this ball valve is ideally suited for handling medium to high pressure fluids and gases, providing versatile and precise flow control. Its sturdy construction and high-quality materials make it a reliable choice for industrial, commercial, and residential applications, providing long-term reliability and performance. The precision-engineered ball mechanism ensures smooth operation and precise flow regulation, helping to increase the efficiency and effectiveness of your fluid handling system.
Whether used in plumbing, HVAC, irrigation or other fluid management systems, IFLOW bronze ball valves with BSPT/NPT threaded ends provide consistent and reliable performance. Choose IFLOW’s bronze ball valves for superior quality, durability and reliable flow control. With its high-quality construction and precise design, this ball valve is a trusted solution for effectively managing fluid flow in a variety of applications.
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
· Working Pressure: PN20
· Working Temperature: -10℃~170℃
· WORKING MEDIUM: Water, Oil and Steam
Specification
| PART NAME | MATERIAL |
| Body | BRASS/BRONZE |
| Seat Retainer | BRASS/BRONZE |
| Ball | BRASS/BRONZE |
| Seat | PTFE |
| Stem | BRASS/BRONZE |
| Packing | PTFE |
| Gland Nut | SS304/316 |
| Lever | SS304/316 |

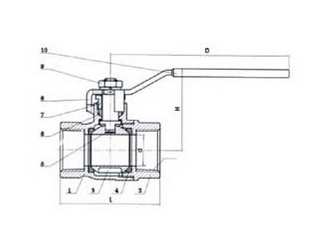

Product wireframe
Ball valves are best used for fast-acting stop/start applications. They are considered quick-acting because they only require a 90° turn of the handle to operate the valve. The quarter turn minimizes valve operation time and decreases the possibility of leakage due to wear.
Ball valves can be used for throttling service if a high level of accuracy is not required. Throttling causes the partially exposed seat to erode because of the high velocity flow and pressure. The wear will eventually lead to valve leakage. Leakage can be corrected if the manual ball valve is automated and is able to move faster in response to a changing position signal.
Dimensions Data
| Size | 1/2″/15 | 3/4″/20 | 1″/25 | 1-1/4″/32 | 1-1/2″/40 | 2″/50 |
| d | 14 | 19 | 24 | 31 | 38 | 49 |
| L | 53 | 61 | 71 | 85 | 92 | 114 |
| H | 44 | 51 | 55 | 65 | 70 | 83 |
| W | 95 | 110 | 110 | 140 | 140 | 160 |
