Bevel Gear Actuator used in gate valve
ACT102
Features
Product Overview
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
Technical Requirement
·The gear actuator can be installed directly on the gate valve,globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. lt can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor gange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.
Specification

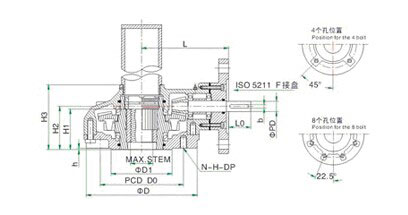

Product wireframe
Dimensions Data
|
Model |
MY-VS10 |
MY-VS20 |
MY-V0 |
MY-V1 |
MY-V2 |
MY-V3 |
MY-V35 |
MY-V5 |
MY-V6 |
|
|
Tachnical-parameters |
||||||||||
|
Ratio |
2.3:1 |
2.35:1 |
3.1:1 |
3.6:1 |
4:1 |
4.1:1 |
5:1 |
6.3;1 |
7.1:1 |
|
|
Max-thrust |
N |
75500 |
113000 |
127000 |
141000 |
190000 |
288000 |
352000 |
521000 |
1110000 |
|
|
Kgf |
7690 |
11500 |
12900 |
14400 |
19400 |
29400 |
35900 |
52200 |
113000 |
|
Max-torque |
N·m |
216 |
363 |
589 |
932 |
1491 |
2296 |
3404 |
8500 |
12500 |
|
|
Kgf·m |
22 |
37 |
60 |
95 |
152 |
234 |
347 |
459 |
740 |
|
Max-stem dia.Mm |
20 |
25 |
28 |
40 |
52 |
60 |
70 |
100 |
120 |
|
|
Weight Kg |
10 |
12 |
21.5 |
28 |
35 |
50 |
95.5 |
190 |
288 |
|
|
Connect ion-size |
||||||||||
|
FLANGE |
F10 |
F12 |
F14 |
F16 |
F(20) |
F25 |
F30 |
F35 |
F40 |
|
|
Flange Excircle(D) |
125 |
150 |
175 |
210 |
250 |
300 |
350 |
415 |
475 |
|
|
Connecting Hole |
D0 |
102 |
125 |
140 |
165 |
205 |
254 |
298 |
356 |
406 |
|
N-H-DP |
4-M10-15 |
4-M12-18 |
4-M16-24 |
8-M20-30 |
8-M16-24 |
8-M16-24 |
8-M20-30 |
8-M30-45 |
8-M36-54 |
|
|
Convex(D1×h) |
70 × 3 |
85 ×3 |
100 ×4 |
130 × 4 |
140 × 5 |
200 × 5 |
230 ×5 |
260 ×5 |
300 × 8 |
|
|
Electrical connectedPD×b(key) |
PDB×(key) |
30 × 8 |
30 × 8 |
35 × 10 |
35 × 10 |
40 × 12 |
40 × 12 |
45 × 14 |
45 × 14 |
50 × 14 |
|
L0 |
55 |
55 |
60 |
60 |
60 |
60 |
65 |
65 |
70 |
|
|
Appearance-size |
||||||||||
|
H1 |
38 |
46 |
55 |
62 |
75 |
85 |
105 |
145 |
165 |
|
|
H2 |
65 |
70 |
70 |
75 |
90 |
100 |
140 |
155 |
210 |
|
|
H3 |
110 |
125 |
128 |
145 |
160 |
170 |
225 |
280 |
335 |
|
|
L |
160 |
175 |
200 |
220 |
240 |
265 |
320 |
395 |
405 |
|
|
Bevel gear combination of parameters and electrical equipment |
||||||||||
|
Denso Parameters |
Model |
IK5210 |
IK5215 |
IK5220 |
IK5230 |
IK5345 |
IK5360 |
IK5490 |
IK5412 |
IK5518 |
|
Torque Nm |
100 |
150 |
200 |
300 |
450 |
600 |
900 |
1200 |
1800 |
|
|
Speed r/min |
18/24 |
18/24 |
18/24 |
18/24 |
24/48 |
24/48 |
24/48 |
18/24 |
24/36 |
|
|
FlangeGB/T12222-2005 |
F10 |
F10 |
F14 |
F14 |
F16 |
F16 |
F25 |
F25 |
F30 |
|
|
|
Torque Nm |
185 |
285 |
480 |
864 |
1450 |
1920 |
3600 |
6050 |
10200 |
