ANSI CLASS 150 Carbon steel Trunnion Ball Valve
BAL701
Product Description
IFLOW’s carbon steel trunnion ball valves are ideal for marine applications and offer unparalleled advantages to the marine industry. Constructed from high-quality carbon steel, the valve is designed to withstand the harsh marine environment, ensuring exceptional durability and resistance to corrosion and erosion. Its trunnion-mounted design provides superior stability and allows efficient operation, making it highly reliable for critical ship systems.
The valve features a precision-engineered ball and seat arrangement that ensures tight shutoff and minimal torque requirements, making it an efficient and low-maintenance solution for offshore operations. Its sturdy structure and advanced sealing technology effectively prevent leaks, enhancing the safety and environmental protection of marine applications. Additionally, IFLOW carbon steel trunnion ball valves are designed to meet stringent industry standards, ensuring consistent performance and reliability in demanding marine conditions.
Its compact design and lightweight construction make installation and maintenance easy, while its superior flow control features optimize fluid management on board. Choose IFLOW’s carbon steel trunnion ball valves for marine applications and experience uncompromising quality and performance on the high seas.
Features
Product Overview
1. Design and Manufacture: API 602, BS5352,ASME B16.34
2. Connection end
Socket Weld End(SW):ASME B16.11 Threaded End(NPT):ASME B1.20.1 Butt-Weld End(BW):ASME B16.25 Flange End(RF/RTJ):ASME B16.5
3. Test & Inspection: API 602, API 598
4. Design Description: Bolted Bonnet(BB), Welded Bonnet(WB), Outside Screw and Yoke(OS&Y)
5. Main Materials: A105,LF2,F5,F11,F22, 304(L),316(L),F347,F321, F51,Alloy 20, Monel
Technical Requirement
· Working Pressure: PN20
· Working Temperature: -10℃~170℃
· WORKING MEDIUM: Water, Oil and Steam
Specification

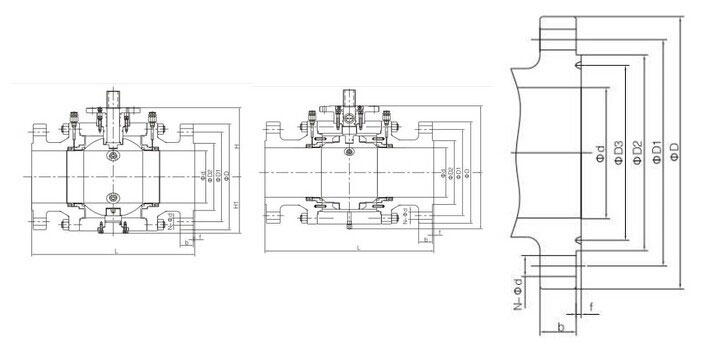

Product wireframe
Dimensions Data
| Nominal diameter(in) | NPS 1/2-8 | ||||||
| Nominal pressure(Mpa) | Class150-Class600 | ||||||
| Material of parts | MATERIAL | ||||||
| NO | PART NAME | CARBON STEEL | STAINESS STELL | ||||
| 1 | Body | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M | ASTM A351 CF3 | ASTM A351 CF3M | |
| 2 | Stud | A193 B7M | A320 B8 | A320 B8M | A320 B8 | ASTM A182 B8M | |
| 3 | Ball | ASTMA105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 4 | Seat | PTFE/NYLON/PEEK/PPL | |||||
| 5 | Anti-fire gasket | SST+Graphite | |||||
| 6 | Bonnet | ASTMA105 | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 7 | Anti-static valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 8 | Stem | ASTM A 182 F6a | ASTM A182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 9 | Thrust bearing | PTFE | |||||
| 10 | Sliding bearing | PTFE | |||||
| 11 | O-ring | VITON | |||||
| 12 | Anti-fire gasket | SST+Graphite | |||||
| 13 | Seal gland | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 14 | Socket head cap screw | A197 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 15 | Packing | Graphite | |||||
| 16 | Packing bushing | ASTM A 182 F6a | ASTM A182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 17 | Packing gland | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | |
| 18 | Anti-fire packing | SST+Graphite | |||||
| 19 | Socket head cap screw | A197 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 20 | Retainer ring | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | |
| 21 | Hexagon nut | A194-2HM | A194-8 | A194-8M | A194-8 | A194-8M | |
| Applicalbe service conditions | Applicable media | Water steam,oil,gas,liquefied gas,natural gas,etc | Nitric acidAcetic acid | Acetic acid | Strong Oxidizer | Urea | |
| Applicalbe temperature | 120℃(PTFE).≤80℃(NYLON),≤250℃(PEEK), ≤250℃(PPL) | ||||||
| Design and manufacturing | API 608,API6D | ||||||
| Face-to face dimensions | ASME B16.10, API 6D | ||||||
| Type of connection | Flange | ASME B16.5/ASME B16.47 | Bult welding | ASME B16.25 | |||
| Pressure test | API598. API6D | ||||||
| Transmission mode | Manual, worm and worm gear transmission, pneumatic, electric | ||||||
Dimensions data(mm)
| Pressure rating | Nominal Diameter | d | Flange | Bult welding | Raised face flange | W | cast steel | forged steel | Weight(kg) | ||||||||
| Class | NPS | DN | L(RF) | L(RTJ) | L(BW) | D | D1 | D2 | f | b | N-Φd | H | H | cast steel | forged steel | ||
| 150 | 1/2” | 15 | 13 | 108 | / | 140 | 90 | 60.5 | 35 | 2 | 9 | 4-Φ16 | 140 | 80 | 78 | 2 | △ |
| 3/4” | 20 | 19 | 117 | / | 152 | 100 | 70 | 43 | 2 | 10 | 4-Φ16 | 140 | 86 | 82 | 2.5 | △ | |
| 1” | 25 | 25 | 127 | / | 165 | 110 | 79.5 | 51 | 2 | 11 | 4-Φ16 | 140 | 98 | 95 | 3.5 | △ | |
| 1 1/4” | 32 | 32 | 140 | / | 178 | 115 | 89 | 64 | 2 | 11 | 4-Φ16 | 180 | 106 | 100 | 6.5 | △ | |
| 1 1/2” | 40 | 38 | 165 | / | 190 | 125 | 98.5 | 73 | 2 | 13 | 4-Φ16 | 180 | 133 | 128 | 7.5 | △ | |
| 2” | 50 | 50 | 178 | 191 | 216 | 150 | 120.5 | 92 | 2 | 14.5 | 4-Φ19 | 200 | 138 | 137 | 9 | △ | |
| 3” | 80 | 75 | 203 | 216 | 283 | 190 | 152.5 | 127 | 2 | 17.5 | 4-Φ19 | 300 | 175 | 148 | 19 | △ | |
| 4” | 100 | 100 | 229 | 241 | 305 | 230 | 190.5 | 157 | 2 | 22.5 | 8-Φ19 | 650 | 235 | 223 | 36 | △ | |
| 6” | 150 | 150 | 394 | 406 | 457 | 280 | 214.5 | 216 | 2 | 24 | 8-Φ22 | 800 | 285 | 278 | 78 | △ | |
| 8” | 200 | 201 | 457 | 470 | 521 | 345 | 295.5 | 270 | 2 | 27 | 8-Φ22 | 1000 | 342 | 336 | 160 | △ | |
| 300 | 1/2” | 15 | 13 | 140 | / | 140 | 95 | 66.5 | 35 | 2 | 13 | 4-Φ16 | 140 | 80 | 78 | 2.5 | △ |
| 3/4” | 20 | 19 | 152 | / | 152 | 115 | 82.5 | 43 | 2 | 14.5 | 4-Φ19 | 140 | 86 | 82 | 3.6 | △ | |
| 1” | 25 | 25 | 165 | / | 165 | 125 | 89 | 51 | 2 | 16 | 4-Φ19 | 140 | 98 | 95 | 5 | △ | |
| 1 1/4” | 32 | 32 | 178 | / | 178 | 135 | 98.5 | 64 | 2 | 17.5 | 4-Φ19 | 180 | 106 | 100 | 8.5 | △ | |
| 1 1/2” | 40 | 38 | 190 | / | 190 | 155 | 114.5 | 73 | 2 | 19.5 | 4-Φ22 | 180 | 133 | 128 | 10 | △ | |
| 2” | 50 | 50 | 216 | 232 | 216 | 165 | 127 | 92 | 2 | 21 | 8-Φ19 | 200 | 138 | 137 | 12 | △ | |
| 3” | 80 | 75 | 283 | 298 | 293 | 210 | 168.5 | 127 | 2 | 27 | 8-Φ22 | 300 | 175 | 148 | 28 | △ | |
| 4” | 100 | 100 | 305 | 321 | 305 | 255 | 200 | 157 | 2 | 30.5 | 8-Φ22 | 650 | 235 | 223 | 46 | △ | |
| 6” | 150 | 150 | 403 | 419 | 457 | 320 | 270 | 216 | 2 | 35 | 12-Φ22 | 800 | 285 | 278 | 104 | △ | |
| 8” | 200 | 201 | 502 | 518 | 521 | 380 | 330 | 270 | 2 | 40 | 12-Φ25 | 1000 | 342 | 336 | 208 | △ | |
| 600 | 1/2” | 15 | 13 | 165 | / | 165 | 95 | 66.5 | 35 | 7 | 14.5 | 4-Φ16 | 140 | 78 | 68 | 5 | △ |
| 3/4” | 20 | 19 | 190 | / | 190 | 115 | 52.5 | 43 | 7 | 16 | 4-Φ19 | 140 | 80 | 76 | 7 | △ | |
| 1” | 25 | 25 | 216 | / | 216 | 125 | 89 | 51 | 7 | 17.5 | 4-Φ19 | 180 | 110 | 106 | 9 | △ | |
| 1 1/4” | 32 | 32 | 229 | / | 229 | 135 | 98.5 | 64 | 7 | 21 | 4-Φ19 | 200 | 115 | 110 | 13 | △ | |
| 1 1/2” | 40 | 38 | 241 | / | 241 | 155 | 114.5 | 73 | 7 | 22.5 | 4-Φ22 | 250 | 135 | 128 | 17 | △ | |
| 2” | 50 | 50 | 292 | 295 | 292 | 165 | 127 | 92 | 7 | 26 | 8-Φ19 | 300 | 152 | 140 | 21 | △ | |
| 3” | 80 | 75 | 356 | 359 | 356 | 210 | 168.5 | 127 | 7 | 32 | 8-Φ22 | 650 | 224 | 213 | 43 | △ | |
| 4” | 100 | 100 | 432 | 435 | 432 | 275 | 216 | 157 | 7 | 38.5 | 8-Φ25 | 800 | 248 | 238 | 85 | △ | |
